How to upgrade and downgrade Oracle Database 18c to 19c

Today my experiment will be upgrading 18c (18.14) to the latest 19c version (currently it is 19.12) in multitenant architecture with 2 PDBs. The idea of this scenario is to validate and test not only the upgrade process but especially the downgrade strategy.

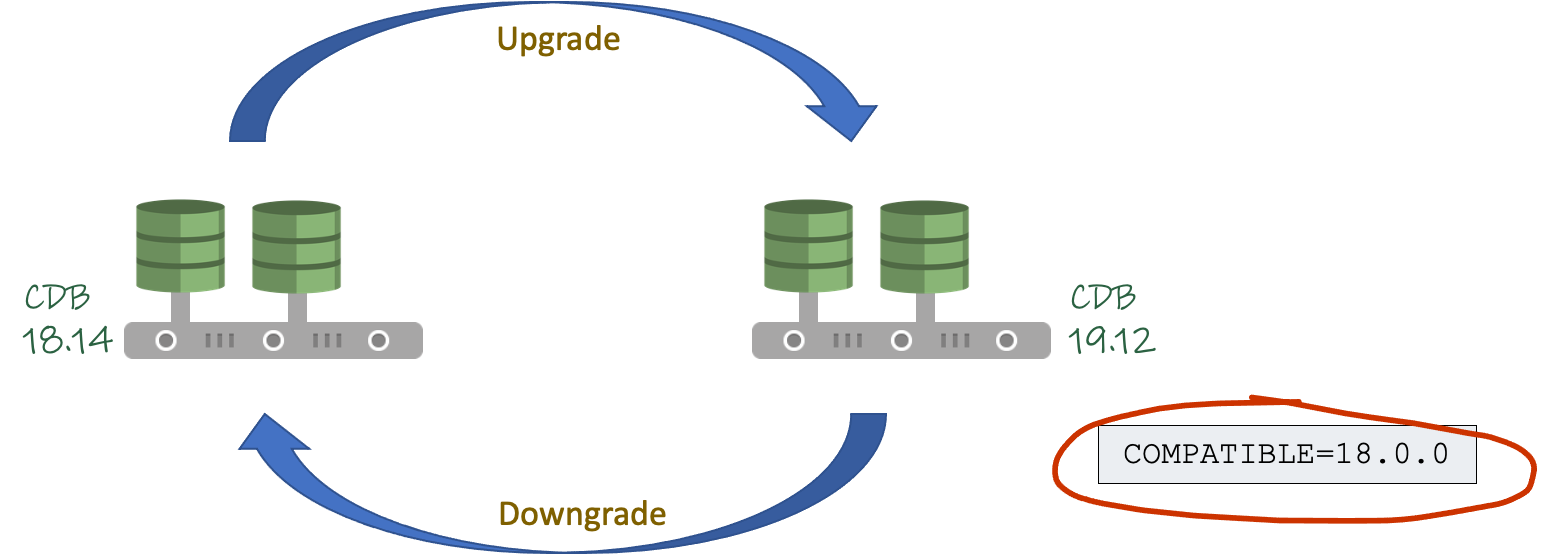

Please note I will keep the COMPATIBLE parameter of my target 19c as 18.0.0 so I can try my fallback strategy without any issues.

My playground will be:

  • Source DB (18.14.0):
    • Running on server odbfcl-18-0-0-0
    • 18.14 RU
dbca -silent -createDatabase \
-gdbName orcl \
-templateName General_Purpose.dbc \
-characterSet AL32UTF8 \
-createAsContainerDatabase true \
-numberOfPDBs 1 \
-pdbAdminPassword "Rodrigo.123" \
-pdbName PDB01 \
-useLocalUndoForPDBs true \
-databaseConfigType SINGLE \
-databaseType MULTIPURPOSE \
-datafileDestination /u01/app/oradata \
-dvConfiguration false \
-emConfiguration NONE \
-enableArchive false \
-memoryMgmtType AUTO_SGA \
-totalMemory 4000 \
-nationalCharacterSet AL16UTF16 \
-olsConfiguration false \
-recoveryAreaDestination /u01/app/fra \
-sampleSchema false \
-sid orcl \
-storageType FS \
-useOMF false \
-sysPassword "Rodrigo.123" \
-systemPassword "Rodrigo.123"
  • Target DB (19.12.0):
    • Running on server odbfcl-19-0-0-0
    • 19.12 RU

Preparing my source environment

In my 18c CDB source system, I will create a new PDB and some user data, so I can check them later after the migration.

[oracle@odbfcl-18-0-0-0 ~]$ sqlplus / as sysdba

SQL*Plus: Release 18.0.0.0.0 - Production on Thu Sep 30 19:33:19 2021
Version 18.14.0.0.0

Copyright (c) 1982, 2018, Oracle.  All rights reserved.

Connected to:
Oracle Database 18c Enterprise Edition Release 18.0.0.0.0 - Production
Version 18.14.0.0.0

SQL> show pdbs

    CON_ID CON_NAME                       OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
         2 PDB$SEED                       READ ONLY  NO
         3 PDB01                          READ WRITE NO

SQL> CREATE PLUGGABLE DATABASE PDB02 ADMIN USER PDBADMIN IDENTIFIED BY "Rodrigo.123" file_name_convert=('/u01/app/oradata/ORCL/pdbseed/','/u01/app/oradata/ORCL/PDB02/');

Pluggable database created.

SQL> ALTER PLUGGABLE DATABASE PDB02 OPEN;

Pluggable database altered.

SQL> show pdbs

    CON_ID CON_NAME                       OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
         2 PDB$SEED                       READ ONLY  NO
         3 PDB01                          READ WRITE NO
         4 PDB02                          READ WRITE NO

SQL> alter session set container=PDB01;

Session altered.

SQL> CREATE USER TEST IDENTIFIED BY "oracle";

User created.

SQL> GRANT DBA TO TEST;

Grant succeeded.

SQL> select file_name from dba_data_files;

FILE_NAME
--------------------------------------------------------------------------------
/u01/app/oradata/ORCL/PDB01/undotbs01.dbf
/u01/app/oradata/ORCL/PDB01/sysaux01.dbf
/u01/app/oradata/ORCL/PDB01/system01.dbf
/u01/app/oradata/ORCL/PDB01/users01.dbf

SQL> CREATE TABLESPACE TOOLS DATAFILE '/u01/app/oradata/ORCL/PDB01/tools01.dbf' size 10M;

Tablespace created.

SQL> CREATE TABLE TEST.T1 TABLESPACE TOOLS AS SELECT * FROM DBA_TABLES;

Table created.

SQL> select count(*) from TEST.T1;

  COUNT(*)
----------
      2134

SQL>

Upgrading first

The first step is to perform the upgrade of the 18c. I will use AutoUpgrade as it automates most of the tasks for me.

My config file has:

global.autoupg_log_dir=/u01/app/oracle/cfgtoollogs/autoupgrade
upg1.log_dir=/u01/app/oracle/cfgtoollogs/autoupgrade/18c
upg1.sid=orcl
upg1.source_home=/u01/app/oracle/product/18.0.0.0/dbhome_1
upg1.target_home=/u01/app/oracle/product/19.0.0.0/dbhome_1
upg1.target_version=19
upg1.upgrade_node=localhost
upg1.run_utlrp=yes
upg1.timezone_upg=no

As I'm also moving to a new server, I will break the AutoUpgrade in the 3 steps approach. Please note you don't need to break it in 3 phases if you have the new Oracle Home version already deployed on that same server.

So first, let me start with the analyse phase:

[oracle@odbfcl-18-0-0-0 ~]$ $ORACLE_HOME/jdk/bin/java -jar autoupgrade.jar -config ./upgrade.cfg -mode analyze
AutoUpgrade 21.2.210721 launched with default options
Processing config file ...
+--------------------------------+
| Starting AutoUpgrade execution |
+--------------------------------+
1 databases will be analyzed
Type 'help' to list console commands
upg> Job 101 completed
------------------- Final Summary --------------------
Number of databases            [ 1 ]

Jobs finished                  [1]
Jobs failed                    [0]
Jobs pending                   [0]
------------- JOBS FINISHED WITH ERROR -------------
Job 101 for orcl

Please check the summary report at:
/u01/app/oracle/cfgtoollogs/autoupgrade/cfgtoollogs/upgrade/auto/status/status.html
/u01/app/oracle/cfgtoollogs/autoupgrade/cfgtoollogs/upgrade/auto/status/status.log

Next, the fixups:

[oracle@odbfcl-18-0-0-0 ~]$ $ORACLE_HOME/jdk/bin/java -jar autoupgrade.jar -config ./upgrade.cfg -mode fixups
AutoUpgrade 21.2.210721 launched with default options
Processing config file ...
+--------------------------------+
| Starting AutoUpgrade execution |
+--------------------------------+
1 databases will be processed
Type 'help' to list console commands
upg> Job 102 completed
------------------- Final Summary --------------------
Number of databases            [ 1 ]

Jobs finished                  [1]
Jobs failed                    [0]
Jobs pending                   [0]
------------- JOBS FINISHED WITH ERROR -------------
Job 102 for orcl

Please check the summary report at:
/u01/app/oracle/cfgtoollogs/autoupgrade/cfgtoollogs/upgrade/auto/status/status.html
/u01/app/oracle/cfgtoollogs/autoupgrade/cfgtoollogs/upgrade/auto/status/status.log

The next step is to stop the database and move all the database and configuration files (including datafiles, controlfiles, spfile, pwfile) and also the files generated by AutoUpgrade tool (upgrade.cfg and /u01/app/oracle/cfgtoollogs/autoupgrade/ folder) to the new server. Note again you won't need this if you are upgrading to the same server.

[oracle@odbfcl-18-0-0-0 ~]$ sqlplus / as sysdba

SQL*Plus: Release 18.0.0.0.0 - Production on Thu Sep 30 20:12:27 2021
Version 18.14.0.0.0

Copyright (c) 1982, 2018, Oracle.  All rights reserved.

Connected to:
Oracle Database 18c Enterprise Edition Release 18.0.0.0.0 - Production
Version 18.14.0.0.0

SQL> shut immediate;
Database closed.
Database dismounted.
ORACLE instance shut down.

SQL> exit
Disconnected from Oracle Database 18c Enterprise Edition Release 18.0.0.0.0 - Production
Version 18.14.0.0.0

After everything is placed, I need to start up the database in 19c Oracle Home in upgrade mode:

[oracle@odbfcl-19-0-0-0 ~]$ sqlplus / as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Thu Sep 30 20:30:25 2021
Version 19.12.0.0.0

Copyright (c) 1982, 2021, Oracle.  All rights reserved.

Connected to an idle instance.

SQL> startup upgrade;
ORACLE instance started.

Total System Global Area 3154114080 bytes
Fixed Size		    9139744 bytes
Variable Size		  754974720 bytes
Database Buffers	 2382364672 bytes
Redo Buffers		    7634944 bytes
Database mounted.
Database opened.

SQL> exit;
Disconnected from Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.12.0.0.0

And finally, I will call the upgrade phase of AutoUpgrade on the target machine:

[oracle@odbfcl-19-0-0-0 ~]$ $ORACLE_HOME/jdk/bin/java -jar autoupgrade.jar -config ./upgrade.cfg -mode upgrade
AutoUpgrade 21.2.210721 launched with default options
Processing config file ...
+--------------------------------+
| Starting AutoUpgrade execution |
+--------------------------------+
1 databases will be processed
Type 'help' to list console commands
upg> Job 103 completed
------------------- Final Summary --------------------
Number of databases            [ 1 ]

Jobs finished                  [1]
Jobs failed                    [0]
Jobs pending                   [0]

Please check the summary report at:
/u01/app/oracle/cfgtoollogs/autoupgrade/cfgtoollogs/upgrade/auto/status/status.html
/u01/app/oracle/cfgtoollogs/autoupgrade/cfgtoollogs/upgrade/auto/status/status.log

Now just checking if my database was really upgraded:

[oracle@odbfcl-19-0-0-0 ~]$ sqlplus / as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Fri Oct 1 00:14:27 2021
Version 19.12.0.0.0

Copyright (c) 1982, 2021, Oracle.  All rights reserved.

Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.12.0.0.0

SQL> show pdbs

    CON_ID CON_NAME                       OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
         2 PDB$SEED                       READ ONLY  NO
         3 PDB01                          READ WRITE NO
         4 PDB02                          READ WRITE NO

SQL> alter session set container=PDB01;

Session altered.

SQL> select count(*) from TEST.T1;

  COUNT(*)
----------
      2134

SQL> select cname, prv_version, version from registry$;

CNAME                                              PRV_VERSION                    VERSION
-------------------------------------------------- ------------------------------ ------------------------------
Oracle Database Catalog Views                      18.0.0.0.0                     19.0.0.0.0
Oracle Database Packages and Types                 18.0.0.0.0                     19.0.0.0.0
Oracle XML Database                                18.0.0.0.0                     19.0.0.0.0
Oracle Real Application Clusters                   18.0.0.0.0                     19.0.0.0.0
Oracle Workspace Manager                           18.0.0.0.0                     19.0.0.0.0
JServer JAVA Virtual Machine                       18.0.0.0.0                     19.0.0.0.0
Oracle XDK                                         18.0.0.0.0                     19.0.0.0.0
Oracle Database Java Packages                      18.0.0.0.0                     19.0.0.0.0
Oracle Text                                        18.0.0.0.0                     19.0.0.0.0
Oracle Multimedia                                  18.0.0.0.0                     19.0.0.0.0
OLAP Analytic Workspace                            18.0.0.0.0                     19.0.0.0.0
Oracle OLAP API                                    18.0.0.0.0                     19.0.0.0.0
Spatial                                            18.0.0.0.0                     19.0.0.0.0
Oracle Label Security                              18.0.0.0.0                     19.0.0.0.0
Oracle Database Vault                              18.0.0.0.0                     19.0.0.0.0

15 rows selected.

SQL> show parameter compatible

NAME                                 TYPE        VALUE
------------------------------------ ----------- ------------------------------
compatible                           string      18.0.0
noncdb_compatible                    boolean     FALSE

Downgrade

Now that I'm on 19c, let's imagine a fallback scenario. After running my production in this environment for some time, I want to move back to the original 18c database. I can't simply restore a backup as I already had some production workload executed in this new database. So a downgrade is the only option I have.

Let's start the downgrading process. I followed the official documentation but there is also a MOS Note for it.

The overall steps are:

  • Taking a backup of my CDB before starting.
  • Cleaning out the UNIFIED_AUDIT_TRAIL.
  • Starting CDB in downgrade mode.
  • Calling DB downgrade
    • $ORACLE_HOME/bin/dbdowngrade
  • Startup the database in the original Oracle Home
  • Run catrelod.sql



First, I need to clean (or backup) the UNIFIED_AUDIT_TRAIL in all the containers:

[oracle@odbfcl-19-0-0-0 ~]$ sqlplus / as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Fri Oct 1 01:40:25 2021
Version 19.12.0.0.0

Copyright (c) 1982, 2021, Oracle.  All rights reserved.

Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.12.0.0.0

SQL> select count(*) from UNIFIED_AUDIT_TRAIL;

  COUNT(*)
----------
      2091

SQL> EXEC DBMS_AUDIT_MGMT.CLEAN_AUDIT_TRAIL(audit_trail_type => DBMS_AUDIT_MGMT.AUDIT_TRAIL_UNIFIED, use_last_arch_timestamp => FALSE);

PL/SQL procedure successfully completed.

SQL> alter session set container=PDB01;

Session altered.

SQL> select count(*) from UNIFIED_AUDIT_TRAIL;

  COUNT(*)
----------
      1056

SQL> EXEC DBMS_AUDIT_MGMT.CLEAN_AUDIT_TRAIL(audit_trail_type => DBMS_AUDIT_MGMT.AUDIT_TRAIL_UNIFIED, use_last_arch_timestamp => FALSE);

PL/SQL procedure successfully completed.

SQL> alter session set container=PDB02;

Session altered.

SQL> select count(*) from UNIFIED_AUDIT_TRAIL;

  COUNT(*)
----------
      1031

SQL> EXEC DBMS_AUDIT_MGMT.CLEAN_AUDIT_TRAIL(audit_trail_type => DBMS_AUDIT_MGMT.AUDIT_TRAIL_UNIFIED, use_last_arch_timestamp => FALSE);

PL/SQL procedure successfully completed.

SQL> alter session set container=PDB$SEED;

Session altered.

SQL> select count(*) from UNIFIED_AUDIT_TRAIL;

  COUNT(*)
----------
      1035

SQL> EXEC DBMS_AUDIT_MGMT.CLEAN_AUDIT_TRAIL(audit_trail_type => DBMS_AUDIT_MGMT.AUDIT_TRAIL_UNIFIED, use_last_arch_timestamp => FALSE);

PL/SQL procedure successfully completed.

The next step is to start up the database in downgrade mode:

[oracle@odbfcl-19-0-0-0 ~]$ sqlplus / as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Fri Oct 1 02:36:01 2021
Version 19.12.0.0.0

Copyright (c) 1982, 2021, Oracle.  All rights reserved.

Connected to an idle instance.

SQL> startup downgrade;
ORACLE instance started.

Total System Global Area 3154114080 bytes
Fixed Size		    9139744 bytes
Variable Size		  637534208 bytes
Database Buffers	 2499805184 bytes
Redo Buffers		    7634944 bytes
Database mounted.
Database opened.

SQL> alter pluggable database all open downgrade;

Pluggable database altered.

SQL> show pdbs;

    CON_ID CON_NAME                       OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
         2 PDB$SEED                       MIGRATE    YES
         3 PDB01                          MIGRATE    YES
         4 PDB02                          MIGRATE    YES

Finally, calling the $ORACLE_HOME/bin/dbdowngrade wrapper:

[oracle@odbfcl-19-0-0-0 ~]$ sh $ORACLE_HOME/bin/dbdowngrade
Downgrading containers
catcon::set_log_file_base_path: ALL catcon-related output will be written to [/u01/app/oracle/product/19.0.0.0/dbhome_1/cfgtoollogs/downgrade/catdwgrd_catcon_21426.lst]

catcon::set_log_file_base_path: catcon: See [/u01/app/oracle/product/19.0.0.0/dbhome_1/cfgtoollogs/downgrade/catdwgrd*.log] files for output generated by scripts

catcon::set_log_file_base_path: catcon: See [/u01/app/oracle/product/19.0.0.0/dbhome_1/cfgtoollogs/downgrade/catdwgrd_*.lst] files for spool files, if any

catcon.pl: completed successfully
[oracle@odbfcl-19-0-0-0 ~]$ grep '^ORA-' /u01/app/oracle/product/19.0.0.0/dbhome_1/cfgtoollogs/downgrade/catdwgrd*.log
[oracle@odbfcl-19-0-0-0 ~]$

As you can see above. No errors were returned.

Finally, the last step is to start back the database on the original 18c Oracle Home in upgrade mode. In my case, I had to move back all the database and configuration files (including datafiles, controlfiles, spfile, pwfile) to the original system.

[oracle@odbfcl-18-0-0-0 ~]$ sqlplus / as sysdba

SQL*Plus: Release 18.0.0.0.0 - Production on Fri Oct 1 02:44:12 2021
Version 18.14.0.0.0

Copyright (c) 1982, 2018, Oracle.  All rights reserved.

Connected to an idle instance.

SQL> startup upgrade;
ORACLE instance started.

Total System Global Area 3154112808 bytes
Fixed Size		    8900904 bytes
Variable Size		  771751936 bytes
Database Buffers	 2365587456 bytes
Redo Buffers		    7872512 bytes
Database mounted.
Database opened.

SQL> alter pluggable database all open upgrade;

Pluggable database altered.

SQL> show pdbs

    CON_ID CON_NAME                       OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
         2 PDB$SEED                       MIGRATE    YES
         3 PDB01                          MIGRATE    YES
         4 PDB02                          MIGRATE    YES

SQL> exit
Disconnected from Oracle Database 18c Enterprise Edition Release 18.0.0.0.0 - Production
Version 18.14.0.0.0
[oracle@odbfcl-18-0-0-0 ~]$

And the last step is to run catrelod.sql, to recreate the database objects for the 18c version:

[oracle@odbfcl-18-0-0-0 ~]$ $ORACLE_HOME/perl/bin/perl $ORACLE_HOME/rdbms/admin/catcon.pl -n 1 -e -b catrelod -d $ORACLE_HOME/rdbms/admin catrelod.sql
catcon::set_log_file_base_path: ALL catcon-related output will be written to [/home/oracle/catrelod_catcon_27176.lst]

catcon::set_log_file_base_path: catcon: See [/home/oracle/catrelod*.log] files for output generated by scripts

catcon::set_log_file_base_path: catcon: See [/home/oracle/catrelod_*.lst] files for spool files, if any

catcon.pl: completed successfully
[oracle@odbfcl-18-0-0-0 ~]$ grep '^ORA-' /home/oracle/catrelod*.log
[oracle@odbfcl-18-0-0-0 ~]$

Now I'm with my CDB is back in 18c:

[oracle@odbfcl-18-0-0-0 ~]$ sqlplus / as sysdba

SQL*Plus: Release 18.0.0.0.0 - Production on Fri Oct 1 03:37:45 2021
Version 18.14.0.0.0

Copyright (c) 1982, 2018, Oracle.  All rights reserved.

Connected to:
Oracle Database 18c Enterprise Edition Release 18.0.0.0.0 - Production
Version 18.14.0.0.0

SQL> show pdbs

    CON_ID CON_NAME                       OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
         2 PDB$SEED                       MIGRATE    YES
         3 PDB01                          MIGRATE    YES
         4 PDB02                          MIGRATE    YES

SQL> shut immediate;
Database closed.
Database dismounted.
ORACLE instance shut down.

SQL> startup;
ORACLE instance started.

Total System Global Area 3154112808 bytes
Fixed Size		    8900904 bytes
Variable Size		  771751936 bytes
Database Buffers	 2365587456 bytes
Redo Buffers		    7872512 bytes
Database mounted.
Database opened.

SQL> alter pluggable database all open;

Pluggable database altered.

SQL> show pdbs

    CON_ID CON_NAME                       OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
         2 PDB$SEED                       READ ONLY  NO
         3 PDB01                          READ WRITE NO
         4 PDB02                          READ WRITE NO

SQL> alter session set container=PDB01;

Session altered.

SQL> select count(*) from TEST.T1;

  COUNT(*)
----------
      2134

SQL> exit
Disconnected from Oracle Database 18c Enterprise Edition Release 18.0.0.0.0 - Production
Version 18.14.0.0.0

And that's it! As you can see, there is no mystery about moving forward and back from 19c to 18c.

Have you enjoyed? Please leave a comment or give a 👍!

2 comments

    • Raman on October 6, 2021 at 17:31
    • Reply

    Why do you need to shutdown the database after fix up? is it different server assuming you are using -upgrade method?

    after - analyze the -deploy will take care of everything right?

    1. Yes, the only reason I've shut it down is that I used the AU to also move to a new server. Otherwise, if it was the same server, "-deploy" would take care of everything.

Leave a Reply

Your email address will not be published.
