Nesse artigo iremos efetuar o upgrade de um banco de dados Oracle RAC executando na versão 11.2.0.1 para a versão 11.2.0.3.
As etapas para um upgrade vindo da versão 11.2.0.2 são bem parecidos, só alterando os pacotes e patches dependentes.
O nosso banco RAC está executando em um Red Hat. Segue as especificações:
- S.O: Red Hat Enterprise Linux Server release 5.8 (Tikanga) – x86_64
- Kernel: 2.6.18-308.16.1.el5
- VMWare: VMware ESXi 5.0
- Oracle 11.2.0.3
- Oracle homes individuais e discos compartilhados para o RAC via VMFS
Para realizar esse upgrade, serão necessários os seguintes pacotes do Oracle:
- Instalador do Oracle e Grid: p10404530_112030_Linux-x86-64 (apenas os arquivos 1,2,3)
- Patch para correção de bug da atualização: p9413827_112010_Linux-x86-64 (se a versão de origem for a 11.2.0.1)
- Último patch set update
Esse tutorial está dividido em 7 etapas macros. Serão elas:
- Transferir arquivos de instalação para o servidor e descompactá-los.
- Aplicar patch de correção 9413827.
- Instalar o pacote cvuqdisk de dependência.
- Instalar e atualizar o Oracle Grid para a última versão.
- Instalar e atualizar o Oracle Database para a última versão.
- Aplicar o último Patch Set Update no Oracle Grid e Database.
Então vamos começar:
1 - Transferir arquivos de instalação para o servidor e descompactá-los.
Primeira parte, vamos transferir os arquivos de um servidor onde temos eles disponíveis. Caso não os tenha, faça download destes arquivos pelo Metalink.
[root@patchserver ~]# scp -r p10404530_112030_Linux-x86-64/ patches/ root@10.20.1.2:/u01/oracle_install root@10.20.1.2's password: p10404530_112030_Linux-x86-64_1of7.zip 100% 1296MB 21.2MB/s 01:01 p10404530_112030_Linux-x86-64_2of7.zip 100% 1089MB 21.8MB/s 00:50 p10404530_112030_Linux-x86-64_3of7.zip 100% 934MB 21.2MB/s 00:44 p9413827_112010_Linux-x86-64.zip 100% 285MB 21.9MB/s 00:13 [root@patchserver oracle_install]#
Em seguida, vamos logar no nó 1 do servidor do RAC para onde os transferimos e verificar:
[root@oraclebdsrv01 ~]# ls -laR /u01/oracle_install/ /u01/oracle_install/: total 16 drwxr-xr-x 4 root root 4096 Jun 14 16:46 . drwxr-xr-x 5 root oinstall 4096 Jun 14 16:41 .. drwxr-xr-x 2 root root 4096 Jun 14 16:45 p10404530_112030_Linux-x86-64 drwxrwxr-x 2 root root 4096 Jun 14 16:47 patches /u01/oracle_install/p10404530_112030_Linux-x86-64: total 3401636 drwxr-xr-x 2 root root 4096 Jun 14 16:45 . drwxr-xr-x 4 root root 4096 Jun 14 16:46 .. -rw-r--r-- 1 root root 1358454646 Jun 14 16:43 p10404530_112030_Linux-x86-64_1of7.zip -rw-r--r-- 1 root root 1142195302 Jun 14 16:44 p10404530_112030_Linux-x86-64_2of7.zip -rw-r--r-- 1 root root 979195792 Jun 14 16:46 p10404530_112030_Linux-x86-64_3of7.zip /u01/oracle_install/patches: total 747360 drwxrwxr-x 2 root root 4096 Jun 14 16:47 . drwxr-xr-x 4 root root 4096 Jun 14 16:46 .. -rw-r--r-- 1 root root 298972922 Jun 14 16:47 p9413827_112010_Linux-x86-64.zip [root@oraclebdsrv01 ~]#
Agora descompacte os arquivos com o usuário oracle:
[root@oraclebdsrv01 ~]# su - oracle [oracle@oraclebdsrv01 ~]$ cd /u01/oracle_install/p10404530_112030_Linux-x86-64/ [oracle@oraclebdsrv01 p10404530_112030_Linux-x86-64]$ ls -la total 3401636 drwxr-xr-x 2 oracle oinstall 4096 Jun 14 16:45 . drwxr-xr-x 5 oracle oinstall 4096 Jun 14 17:13 .. -rw-r--r-- 1 oracle oinstall 1358454646 Jun 14 16:43 p10404530_112030_Linux-x86-64_1of7.zip -rw-r--r-- 1 oracle oinstall 1142195302 Jun 14 16:44 p10404530_112030_Linux-x86-64_2of7.zip -rw-r--r-- 1 oracle oinstall 979195792 Jun 14 16:46 p10404530_112030_Linux-x86-64_3of7.zip [oracle@oraclebdsrv01 p10404530_112030_Linux-x86-64]$ unzip "*.zip" Archive: p10404530_112030_Linux-x86-64_1of7.zip creating: database/ ..... Archive: p10404530_112030_Linux-x86-64_2of7.zip creating: database/stage/Components/oracle.ctx/ ..... Archive: p10404530_112030_Linux-x86-64_3of7.zip creating: grid/ ..... 3 archives were successfully processed. [oracle@oraclebdsrv01 p10404530_112030_Linux-x86-64]$
A primeira parte foi fácil.
2 - Aplicar patch de correção 9413827.
A segunda parte será a aplicação do patch de correção da atualização para esta versão de banco. Se a pulássemos, nos depararíamos com a seguinte mensagem durante a instalação do Grid na etapa 3:
Atenção, para esta etapa, LEIA ATENTAMENTE o arquivo README.txt do patch.
No meu caso, a pasta de instalação do Oracle Home não é compartilhada entre as intâncias. Portanto, deverei utilizar a opção "Configuration B" especificada no manual.
É necessário executar o passo abaixo inteiro em um nó do seu RAC por vez. Ou seja, executar todas as etapas em um nó, depois em outro, sucessivamente.
Dividiremos essa parte em 10 subetapas:
### 1 Verifique se o opatch está configurado para o ORACLE_HOME e GRID_HOME.
Como oracle, execute:
% opatch lsinventory -detail -oh <rdbms_home>
[root@oraclebdsrv01 ~]# su - oracle [oracle@oraclebdsrv01 ~]$ echo $DB_HOME /u01/app/oracle/product/11.1.0/db_1 [oracle@oraclebdsrv01 ~]$ opatch lsinventory -detail -oh $DB_HOME Invoking OPatch 11.1.0.6.6 Oracle Interim Patch Installer version 11.1.0.6.6 Copyright (c) 2009, Oracle Corporation. All rights reserved. Oracle Home : /u01/app/oracle/product/11.1.0/db_1 Central Inventory : /u01/app/oraInventory from : /etc/oraInst.loc OPatch version : 11.1.0.6.6 OUI version : 11.2.0.1.0 OUI location : /u01/app/oracle/product/11.1.0/db_1/oui Log file location : /u01/app/oracle/product/11.1.0/db_1/cfgtoollogs/opatch/opatch2013-06-20_15-26-49PM.log Patch history file: /u01/app/oracle/product/11.1.0/db_1/cfgtoollogs/opatch/opatch_history.txt Lsinventory Output file location : /u01/app/oracle/product/11.1.0/db_1/cfgtoollogs/opatch/lsinv/lsinventory2013-06-20_15-26-49PM.txt -------------------------------------------------------------------------------- Installed Top-level Products (1): Oracle Database 11g 11.2.0.1.0 There are 1 products installed in this Oracle Home. Installed Products (134): Agent Required Support Files 10.2.0.4.2 Assistant Common Files 11.2.0.1.0 Bali Share 1.1.18.0.0 Buildtools Common Files 11.2.0.1.0 Character Set Migration Utility 11.2.0.1.0 Cluster Verification Utility Common Files 11.2.0.1.0 Database Configuration and Upgrade Assistants 11.2.0.1.0 Database SQL Scripts 11.2.0.1.0 Database Workspace Manager 11.2.0.1.0 Deinstallation Tool 11.2.0.1.0 Enterprise Edition Options 11.2.0.1.0 Enterprise Manager Agent 10.2.0.4.2 Enterprise Manager Agent Core Files 10.2.0.4.2 Enterprise Manager Common Core Files 10.2.0.4.2 Enterprise Manager Common Files 10.2.0.4.2 Enterprise Manager Database Plugin -- Agent Support 11.2.0.1.0 Enterprise Manager Database Plugin -- Repository Support 11.2.0.1.0 Enterprise Manager Grid Control Core Files 10.2.0.4.2 Enterprise Manager Minimal Integration 11.2.0.1.0 Enterprise Manager plugin Common Files 11.2.0.1.0 Enterprise Manager Repository Core Files 10.2.0.4.2 Exadata Storage Server 11.2.0.1.0 Expat libraries 2.0.1.0.1 Generic Connectivity Common Files 11.2.0.1.0 HAS Common Files 11.2.0.1.0 HAS Files for DB 11.2.0.1.0 Installation Common Files 11.2.0.1.0 Installation Plugin Files 11.2.0.1.0 Installer SDK Component 11.2.0.1.0 JAccelerator (COMPANION) 11.2.0.1.0 LDAP Required Support Files 11.2.0.1.0 OLAP SQL Scripts 11.2.0.1.0 Oracle 11g Warehouse Builder Required Files 11.2.0.1.0 Oracle Advanced Security 11.2.0.1.0 Oracle Application Express 11.2.0.1.0 Oracle Call Interface (OCI) 11.2.0.1.0 Oracle Clusterware RDBMS Files 11.2.0.1.0 Oracle Code Editor 1.2.1.0.0I Oracle Configuration Manager 10.3.1.1.0 Oracle Configuration Manager Deconfiguration 10.3.1.0.0 Oracle Containers for Java 11.2.0.1.0 Oracle Core Required Support Files 11.2.0.1.0 Oracle Data Mining RDBMS Files 11.2.0.1.0 Oracle Database 11g 11.2.0.1.0 Oracle Database 11g 11.2.0.1.0 Oracle Database 11g Multimedia Files 11.2.0.1.0 Oracle Database Deconfiguration 11.2.0.1.0 Oracle Database Gateway for ODBC 11.2.0.1.0 Oracle Database User Interface 2.2.13.0.0 Oracle Database Utilities 11.2.0.1.0 Oracle Database Vault J2EE Application 11.2.0.1.0 Oracle Database Vault option 11.2.0.1.0 Oracle DBCA Deconfiguration 11.2.0.1.0 Oracle Display Fonts 9.0.2.0.0 Oracle Enterprise Manager Console DB 11.2.0.1.0 Oracle Extended Windowing Toolkit 3.4.47.0.0 Oracle Globalization Support 11.2.0.1.0 Oracle Globalization Support 11.2.0.1.0 Oracle Help For Java 4.2.9.0.0 Oracle Help for the Web 2.0.14.0.0 Oracle Ice Browser 5.2.3.6.0 Oracle Internet Directory Client 11.2.0.1.0 Oracle Java Client 11.2.0.1.0 Oracle JDBC Server Support Package 11.2.0.1.0 Oracle JDBC/OCI Instant Client 11.2.0.1.0 Oracle JDBC/THIN Interfaces 11.2.0.1.0 Oracle JFC Extended Windowing Toolkit 4.2.36.0.0 Oracle JVM 11.2.0.1.0 Oracle Label Security 11.2.0.1.0 Oracle LDAP administration 11.2.0.1.0 Oracle Locale Builder 11.2.0.1.0 Oracle Message Gateway Common Files 11.2.0.1.0 Oracle Multimedia 11.2.0.1.0 Oracle Multimedia Annotator 11.2.0.1.0 Oracle Multimedia Client Option 11.2.0.1.0 Oracle Multimedia Java Advanced Imaging 11.2.0.1.0 Oracle Multimedia Locator 11.2.0.1.0 Oracle Multimedia Locator RDBMS Files 11.2.0.1.0 Oracle Net 11.2.0.1.0 Oracle Net Listener 11.2.0.1.0 Oracle Net Required Support Files 11.2.0.1.0 Oracle Net Services 11.2.0.1.0 Oracle Netca Client 11.2.0.1.0 Oracle Notification Service 11.2.0.0.0 Oracle Notification Service (eONS) 11.2.0.1.0 Oracle ODBC Driver 11.2.0.1.0 Oracle ODBC Driverfor Instant Client 11.2.0.1.0 Oracle OLAP 11.2.0.1.0 Oracle OLAP API 11.2.0.1.0 Oracle OLAP RDBMS Files 11.2.0.1.0 Oracle One-Off Patch Installer 11.2.0.0.2 Oracle Partitioning 11.2.0.1.0 Oracle Programmer 11.2.0.1.0 Oracle Quality of Service Management (Client) 11.2.0.1.0 Oracle RAC Deconfiguration 11.2.0.1.0 Oracle RAC Required Support Files-HAS 11.2.0.1.0 Oracle Real Application Testing 11.2.0.1.0 Oracle Recovery Manager 11.2.0.1.0 Oracle Security Developer Tools 11.2.0.1.0 Oracle Spatial 11.2.0.1.0 Oracle SQL Developer 11.2.0.1.0 Oracle Starter Database 11.2.0.1.0 Oracle Text 11.2.0.1.0 Oracle Text Required Support Files 11.2.0.1.0 Oracle UIX 2.2.24.5.0 Oracle Universal Connection Pool 11.2.0.1.0 Oracle Universal Installer 11.2.0.1.0 Oracle Wallet Manager 11.2.0.1.0 Oracle XML Development Kit 11.2.0.1.0 Oracle XML Query 11.2.0.1.0 Parser Generator Required Support Files 11.2.0.1.0 Perl Interpreter 5.10.0.0.1 Perl Modules 5.10.0.0.1 PL/SQL 11.2.0.1.0 PL/SQL Embedded Gateway 11.2.0.1.0 Platform Required Support Files 11.2.0.1.0 Precompiler Common Files 11.2.0.1.0 Precompiler Required Support Files 11.2.0.1.0 Provisioning Advisor Framework 10.2.0.4.2 RDBMS Required Support Files 11.2.0.1.0 RDBMS Required Support Files for Instant Client 11.2.0.1.0 regexp 2.1.9.0.0 Required Support Files 11.2.0.1.0 Sample Schema Data 11.2.0.1.0 Secure Socket Layer 11.2.0.1.0 SQL*Plus 11.2.0.1.0 SQL*Plus Files for Instant Client 11.2.0.1.0 SQL*Plus Required Support Files 11.2.0.1.0 SQLJ Runtime 11.2.0.1.0 SSL Required Support Files for InstantClient 11.2.0.1.0 Sun JDK 1.5.0.17.0 XDK Required Support Files 11.2.0.1.0 XML Parser for Java 11.2.0.1.0 XML Parser for Oracle JVM 11.2.0.1.0 There are 134 products installed in this Oracle Home. There are no Interim patches installed in this Oracle Home. Rac system comprising of multiple nodes Local node = oraclebdsrv01 Remote node = oraclebdsrv02 -------------------------------------------------------------------------------- OPatch succeeded. [oracle@oraclebdsrv01 ~]$
Como grid, execute:
% opatch lsinventory -detail -oh <crs_home>
[root@oraclebdsrv01 ~]# su - grid [grid@oraclebdsrv01 ~]$ echo $GRID_HOME /u01/app/11.2.0/grid [grid@oraclebdsrv01 ~]$ opatch lsinventory -detail -oh $GRID_HOME Invoking OPatch 11.1.0.6.6 Oracle Interim Patch Installer version 11.1.0.6.6 Copyright (c) 2009, Oracle Corporation. All rights reserved. Oracle Home : /u01/app/11.2.0/grid Central Inventory : /u01/app/oraInventory from : /etc/oraInst.loc OPatch version : 11.1.0.6.6 OUI version : 11.2.0.1.0 OUI location : /u01/app/11.2.0/grid/oui Log file location : /u01/app/11.2.0/grid/cfgtoollogs/opatch/opatch2013-06-20_15-27-03PM.log Patch history file: /u01/app/11.2.0/grid/cfgtoollogs/opatch/opatch_history.txt Lsinventory Output file location : /u01/app/11.2.0/grid/cfgtoollogs/opatch/lsinv/lsinventory2013-06-20_15-27-03PM.txt -------------------------------------------------------------------------------- Installed Top-level Products (1): Oracle Grid Infrastructure 11.2.0.1.0 There are 1 products installed in this Oracle Home. Installed Products (87): Agent Required Support Files 10.2.0.4.2 Assistant Common Files 11.2.0.1.0 Automatic Storage Management Assistant 11.2.0.1.0 Bali Share 1.1.18.0.0 Buildtools Common Files 11.2.0.1.0 Character Set Migration Utility 11.2.0.1.0 Cluster Ready Services Files 11.2.0.1.0 Cluster Verification Utility Common Files 11.2.0.1.0 Cluster Verification Utility Files 11.2.0.1.0 Database SQL Scripts 11.2.0.1.0 Deinstallation Tool 11.2.0.1.0 Enterprise Manager Common Core Files 10.2.0.4.2 Enterprise Manager Common Files 10.2.0.4.2 Enterprise Manager Minimal Integration 11.2.0.1.0 Enterprise Manager plugin Common Files 11.2.0.1.0 Expat libraries 2.0.1.0.1 HAS Common Files 11.2.0.1.0 HAS Files for DB 11.2.0.1.0 Installation Common Files 11.2.0.1.0 Installation Plugin Files 11.2.0.1.0 Installer SDK Component 11.2.0.1.0 LDAP Required Support Files 11.2.0.1.0 OLAP SQL Scripts 11.2.0.1.0 Oracle Clusterware RDBMS Files 11.2.0.1.0 Oracle Configuration Manager Deconfiguration 10.3.1.0.0 Oracle Containers for Java 11.2.0.1.0 Oracle Core Required Support Files 11.2.0.1.0 Oracle Database 11g 11.2.0.1.0 Oracle Database 11g Multimedia Files 11.2.0.1.0 Oracle Database Deconfiguration 11.2.0.1.0 Oracle Database User Interface 2.2.13.0.0 Oracle Database Utilities 11.2.0.1.0 Oracle DBCA Deconfiguration 11.2.0.1.0 Oracle Extended Windowing Toolkit 3.4.47.0.0 Oracle Globalization Support 11.2.0.1.0 Oracle Globalization Support 11.2.0.1.0 Oracle Grid Infrastructure 11.2.0.1.0 Oracle Help For Java 4.2.9.0.0 Oracle Ice Browser 5.2.3.6.0 Oracle Internet Directory Client 11.2.0.1.0 Oracle Java Client 11.2.0.1.0 Oracle JDBC/OCI Instant Client 11.2.0.1.0 Oracle JDBC/THIN Interfaces 11.2.0.1.0 Oracle JFC Extended Windowing Toolkit 4.2.36.0.0 Oracle JVM 11.2.0.1.0 Oracle LDAP administration 11.2.0.1.0 Oracle Locale Builder 11.2.0.1.0 Oracle Multimedia 11.2.0.1.0 Oracle Multimedia Client Option 11.2.0.1.0 Oracle Multimedia Java Advanced Imaging 11.2.0.1.0 Oracle Multimedia Locator 11.2.0.1.0 Oracle Multimedia Locator RDBMS Files 11.2.0.1.0 Oracle Net 11.2.0.1.0 Oracle Net Listener 11.2.0.1.0 Oracle Net Required Support Files 11.2.0.1.0 Oracle Netca Client 11.2.0.1.0 Oracle Notification Service 11.2.0.0.0 Oracle Notification Service (eONS) 11.2.0.1.0 Oracle One-Off Patch Installer 11.2.0.0.2 Oracle Quality of Service Management (Client) 11.2.0.1.0 Oracle Quality of Service Management (Server) 11.2.0.1.0 Oracle RAC Deconfiguration 11.2.0.1.0 Oracle RAC Required Support Files-HAS 11.2.0.1.0 Oracle Recovery Manager 11.2.0.1.0 Oracle Security Developer Tools 11.2.0.1.0 Oracle Text Required Support Files 11.2.0.1.0 Oracle Universal Installer 11.2.0.1.0 Oracle Wallet Manager 11.2.0.1.0 Parser Generator Required Support Files 11.2.0.1.0 Perl Interpreter 5.10.0.0.1 Perl Modules 5.10.0.0.1 PL/SQL 11.2.0.1.0 PL/SQL Embedded Gateway 11.2.0.1.0 Platform Required Support Files 11.2.0.1.0 Precompiler Required Support Files 11.2.0.1.0 RDBMS Required Support Files 11.2.0.1.0 RDBMS Required Support Files for Instant Client 11.2.0.1.0 Required Support Files 11.2.0.1.0 Secure Socket Layer 11.2.0.1.0 SQL*Plus 11.2.0.1.0 SQL*Plus Files for Instant Client 11.2.0.1.0 SQL*Plus Required Support Files 11.2.0.1.0 SSL Required Support Files for InstantClient 11.2.0.1.0 Sun JDK 1.5.0.17.0 Universal Storage Manager Files 11.2.0.1.0 XDK Required Support Files 11.2.0.1.0 XML Parser for Java 11.2.0.1.0 There are 87 products installed in this Oracle Home. There are no Interim patches installed in this Oracle Home. Rac system comprising of multiple nodes Local node = oraclebdsrv01 Remote node = oraclebdsrv02 -------------------------------------------------------------------------------- OPatch succeeded. [grid@oraclebdsrv01 ~]$
### 2 Descompacte os arquivos.
Como oracle, execute:
% unzip p9413827_11201_LINUX.X64.zip
[root@oraclebdsrv01 ~]# su - oracle [oracle@oraclebdsrv01 ~]$ cd /u01/oracle_install/patches [oracle@oraclebdsrv01 patches]$ ls -la total 747360 drwxrwxr-x 2 oracle oinstall 4096 Jun 14 16:47 . drwxr-xr-x 5 oracle oinstall 4096 Jun 14 17:13 .. -rw-r--r-- 1 oracle oinstall 298972922 Jun 14 16:47 p9413827_112010_Linux-x86-64.zip [oracle@oraclebdsrv01 patches]$ unzip p9413827_112010_Linux-x86-64.zip Archive: p9413827_112010_Linux-x86-64.zip creating: 9413827/ ..... [oracle@oraclebdsrv01 patches]$
### 3 Pare a home executando na máquina.
Como oracle, execute:
% srvctl stop home -o <rdbms_home> -s -n <node_name>#
[root@oraclebdsrv01 ~]# su - oracle [oracle@oraclebdsrv01 ~]$ srvctl stop home -o $DB_HOME -s /u01/oracle_install/patches/status.file -n oraclebdsrv01 [oracle@oraclebdsrv01 ~]$
### 4 Desproteger os arquivos bloqueados da instalação.
Como root, execute:
# <crs_home>/crs/install/rootcrs.pl -unlock
ATENÇÂO: Se você tiver muitos arquivos de audit, essa etapa vai demorar muito! Portanto, apague-os antes!!
No meu caso, eu não sabia que tinha tantos e o meu comando "rootcrs.pl -unlock" ficou travado. Abri uma outra sessão paralela para resolver o problema.
[root@oraclebdsrv01 ~]# ls -1 /u01/app/oracle/admin/SGF/adump/ | wc -l 127153 [root@oraclebdsrv01 ~]# ls -1 /u01/app/11.2.0/grid/rdbms/audit/ | wc -l 3175278
Um dos meios mais rápidos de apagar arquivos é utilizando rsync, como pode ser visto em: http://linuxnote.net/jianingy/en/linux/a-fast-way-to-remove-huge-number-of-files.html
[grid@oraclebdsrv01 ~]# find /u01/app/11.2.0/grid/rdbms/audit/ ! -name "*.aud" /u01/app/11.2.0/grid/rdbms/audit/ [grid@oraclebdsrv01 ~]$ mkdir /tmp/empty [grid@oraclebdsrv01 ~]$ rsync -a --delete /tmp/empty/ /u01/app/11.2.0/grid/rdbms/audit/
Executando o script:
[root@oraclebdsrv01 ~]# /u01/app/11.2.0/grid/crs/install/rootcrs.pl -unlock 2013-06-21 10:17:54: Parsing the host name 2013-06-21 10:17:54: Checking for super user privileges 2013-06-21 10:17:54: User has super user privileges Using configuration parameter file: crs/install/crsconfig_params CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.crsd' on 'oraclebdsrv01' CRS-2790: Starting shutdown of Cluster Ready Services-managed resources on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.OCR_VOTE.dg' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.registry.acfs' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.ARCHIVE.dg' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.DATA1.dg' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.LISTENER.lsnr' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.LISTENER.lsnr' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.oraclebdsrv01.vip' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.oraclebdsrv01.vip' on 'oraclebdsrv01' succeeded CRS-2672: Attempting to start 'ora.oraclebdsrv01.vip' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.registry.acfs' on 'oraclebdsrv01' succeeded CRS-2676: Start of 'ora.oraclebdsrv01.vip' on 'oraclebdsrv02' succeeded CRS-2677: Stop of 'ora.OCR_VOTE.dg' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.ARCHIVE.dg' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.DATA1.dg' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.asm' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.asm' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.eons' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.ons' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.ons' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.net1.network' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.net1.network' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.eons' on 'oraclebdsrv01' succeeded CRS-2792: Shutdown of Cluster Ready Services-managed resources on 'oraclebdsrv01' has completed CRS-2677: Stop of 'ora.crsd' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.drivers.acfs' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.gpnpd' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.cssdmonitor' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.ctssd' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.evmd' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.asm' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.mdnsd' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.cssdmonitor' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.evmd' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.mdnsd' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.gpnpd' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.drivers.acfs' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.asm' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.ctssd' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.cssd' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.cssd' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.diskmon' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.gipcd' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.gipcd' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.diskmon' on 'oraclebdsrv01' succeeded CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'oraclebdsrv01' has completed CRS-4133: Oracle High Availability Services has been stopped. Successfully unlock /u01/app/11.2.0/grid [root@oraclebdsrv01 ~]#
### 5 Salve as configurações atuais da home do banco de dados.
Como oracle, execute:
% custom/server/9413827/custom/scripts/prepatch.sh -dbhome <rdbms_home>
[root@oraclebdsrv01 ~]# su - oracle [oracle@oraclebdsrv01 ~]$ cd /u01/oracle_install/patches/9413827/ [oracle@oraclebdsrv01 9413827]$ custom/server/9413827/custom/scripts/prepatch.sh -dbhome $DB_HOME custom/server/9413827/custom/scripts/prepatch.sh completed successfully. [oracle@oraclebdsrv01 9413827]$
### 6 Vamos aplicar o patch do CRS e após do RDBMS.
Como grid, execute:
% opatch napply -local -oh <crs_home> -id 9413827
[root@oraclebdsrv01 ~]# su - grid [grid@oraclebdsrv01 ~]$ cd /u01/oracle_install/patches/ [grid@oraclebdsrv01 patches]$ ls -la total 747368 drwxrwxr-x 3 oracle oinstall 4096 Jun 21 10:14 . drwxr-xr-x 5 oracle oinstall 4096 Jun 14 17:13 .. drwxr-xr-x 5 oracle oinstall 4096 Oct 25 2010 9413827 -rw-r--r-- 1 oracle oinstall 298972922 Jun 14 16:47 p9413827_112010_Linux-x86-64.zip -rw-r--r-- 1 oracle oinstall 7 Jun 21 10:14 status.file [grid@oraclebdsrv01 patches]$ echo $GRID_HOME /u01/app/11.2.0/grid [grid@oraclebdsrv01 patches]$ opatch napply -local -oh $GRID_HOME -id 9413827 Invoking OPatch 11.1.0.6.6 Oracle Interim Patch Installer version 11.1.0.6.6 Copyright (c) 2009, Oracle Corporation. All rights reserved. UTIL session Oracle Home : /u01/app/11.2.0/grid Central Inventory : /u01/app/oraInventory from : /etc/oraInst.loc OPatch version : 11.1.0.6.6 OUI version : 11.2.0.1.0 OUI location : /u01/app/11.2.0/grid/oui Log file location : /u01/app/11.2.0/grid/cfgtoollogs/opatch/opatch2013-06-21_13-17-02PM.log Patch history file: /u01/app/11.2.0/grid/cfgtoollogs/opatch/opatch_history.txt Invoking utility "napply" Checking conflict among patches... Checking if Oracle Home has components required by patches... Checking conflicts against Oracle Home... OPatch continues with these patches: 9413827 Do you want to proceed? [y|n] y User Responded with: Y Running prerequisite checks... You selected -local option, hence OPatch will patch the local system only. Please shutdown Oracle instances running out of this ORACLE_HOME on the local system. (Oracle Home = '/u01/app/11.2.0/grid') Is the local system ready for patching? [y|n] y User Responded with: Y Backing up files affected by the patch 'NApply' for restore. This might take a while... Applying patch 9413827... ApplySession applying interim patch '9413827' to OH '/u01/app/11.2.0/grid' Backing up files affected by the patch '9413827' for rollback. This might take a while... Patching component oracle.crs, 11.2.0.1.0... Copying file to "/u01/app/11.2.0/grid/bin/appagent.bin" ..... Copying file to "/u01/app/11.2.0/grid/srvm/mesg/sclsus.msg" ApplySession adding interim patch '9413827' to inventory Verifying the update... Inventory check OK: Patch ID 9413827 is registered in Oracle Home inventory with proper meta-data. Files check OK: Files from Patch ID 9413827 are present in Oracle Home. The local system has been patched and can be restarted. UtilSession: N-Apply done. OPatch succeeded. [grid@oraclebdsrv01 patches]$
Como oracle, execute:
% opatch napply custom/server/ -local -oh <rdbms_home> -id 9413827
[root@oraclebdsrv01 ~]# su - oracle [oracle@oraclebdsrv01 ~]$ cd /u01/oracle_install/patches/ [oracle@oraclebdsrv01 patches]$ ls -la total 747368 drwxrwxr-x 3 oracle oinstall 4096 Jun 21 10:14 . drwxr-xr-x 5 oracle oinstall 4096 Jun 14 17:13 .. drwxr-xr-x 5 oracle oinstall 4096 Oct 25 2010 9413827 -rw-r--r-- 1 oracle oinstall 298972922 Jun 14 16:47 p9413827_112010_Linux-x86-64.zip -rw-r--r-- 1 oracle oinstall 7 Jun 21 10:14 status.file [oracle@oraclebdsrv01 patches]$ echo $DB_HOME /u01/app/oracle/product/11.1.0/db_1 [oracle@oraclebdsrv01 patches]$ opatch napply 9413827/custom/server/ -local -oh $DB_HOME -id 9413827 Invoking OPatch 11.1.0.6.6 Oracle Interim Patch Installer version 11.1.0.6.6 Copyright (c) 2009, Oracle Corporation. All rights reserved. UTIL session Oracle Home : /u01/app/oracle/product/11.1.0/db_1 Central Inventory : /u01/app/oraInventory from : /etc/oraInst.loc OPatch version : 11.1.0.6.6 OUI version : 11.2.0.1.0 OUI location : /u01/app/oracle/product/11.1.0/db_1/oui Log file location : /u01/app/oracle/product/11.1.0/db_1/cfgtoollogs/opatch/opatch2013-06-21_13-55-07PM.log Patch history file: /u01/app/oracle/product/11.1.0/db_1/cfgtoollogs/opatch/opatch_history.txt Invoking utility "napply" Checking conflict among patches... Checking if Oracle Home has components required by patches... Checking conflicts against Oracle Home... OPatch continues with these patches: 9413827 Do you want to proceed? [y|n] y User Responded with: Y Running prerequisite checks... You selected -local option, hence OPatch will patch the local system only. Please shutdown Oracle instances running out of this ORACLE_HOME on the local system. (Oracle Home = '/u01/app/oracle/product/11.1.0/db_1') Is the local system ready for patching? [y|n] y User Responded with: Y Backing up files affected by the patch 'NApply' for restore. This might take a while... Applying patch 9413827... ApplySession applying interim patch '9413827' to OH '/u01/app/oracle/product/11.1.0/db_1' Backing up files affected by the patch '9413827' for rollback. This might take a while... Patching component oracle.rdbms, 11.2.0.1.0... Copying file to "/u01/app/oracle/product/11.1.0/db_1/bin/cluvfy" ..... Copying file to "/u01/app/oracle/product/11.1.0/db_1/srvm/mesg/sclsus.msg" ApplySession adding interim patch '9413827' to inventory Verifying the update... Inventory check OK: Patch ID 9413827 is registered in Oracle Home inventory with proper meta-data. Files check OK: Files from Patch ID 9413827 are present in Oracle Home. Running make for target install Running make for target install The local system has been patched and can be restarted. UtilSession: N-Apply done. OPatch succeeded. [oracle@oraclebdsrv01 patches]$
### 7 Alguns ajustes de configurações precisam ser feitos.
Como root, execute:
# chmod +w <crs_home>/log//agent
# chmod +w <crs_home>/log//agent/crsd
[root@oraclebdsrv01 ~]# chmod +w /u01/app/11.2.0/grid/log/oraclebdsrv01/agent/ [root@oraclebdsrv01 ~]# chmod +w /u01/app/11.2.0/grid/log/oraclebdsrv01/agent/crsd/ [root@oraclebdsrv01 ~]#
Como oracle, execute:
% custom/server/9413827/custom/scripts/postpatch.sh -dbhome <rdbms_home>
[root@oraclebdsrv01 ~]# su - oracle [oracle@oraclebdsrv01 ~]$ cd /u01/oracle_install/patches/9413827/ [oracle@oraclebdsrv01 9413827]$ echo $DB_HOME /u01/app/oracle/product/11.1.0/db_1 [oracle@oraclebdsrv01 9413827]$ custom/server/9413827/custom/scripts/postpatch.sh -dbhome $DB_HOME Reading /u01/app/oracle/product/11.1.0/db_1/install/params.ora.. Reading /u01/app/oracle/product/11.1.0/db_1/install/params.ora.. Parsing file /u01/app/oracle/product/11.1.0/db_1/bin/racgwrap Parsing file /u01/app/oracle/product/11.1.0/db_1/bin/srvctl Parsing file /u01/app/oracle/product/11.1.0/db_1/bin/srvconfig Parsing file /u01/app/oracle/product/11.1.0/db_1/bin/cluvfy Verifying file /u01/app/oracle/product/11.1.0/db_1/bin/racgwrap Verifying file /u01/app/oracle/product/11.1.0/db_1/bin/srvctl Verifying file /u01/app/oracle/product/11.1.0/db_1/bin/srvconfig Verifying file /u01/app/oracle/product/11.1.0/db_1/bin/cluvfy Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/bin/racgwrap Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/bin/srvctl Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/bin/srvconfig Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/bin/cluvfy Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/bin/racgmain Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/bin/racgeut Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/bin/diskmon.bin Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/bin/lsnodes Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/bin/osdbagrp Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/bin/rawutl Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/srvm/admin/ractrans Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/srvm/admin/getcrshome Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/bin/gnsd Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/bin/crsdiag.pl Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/lib/libhasgen11.so Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/lib/libclsra11.so Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/lib/libdbcfg11.so Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/lib/libocr11.so Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/lib/libocrb11.so Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/lib/libocrutl11.so Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/lib/libuini11.so Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/lib/librdjni11.so Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/lib/libgns11.so Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/lib/libgnsjni11.so Reapplying file permissions on /u01/app/oracle/product/11.1.0/db_1/lib/libagfw11.so [oracle@oraclebdsrv01 9413827]$
### 8 Precisamos restaurar as permissões de segurança dos diretórios da aplicação.
Como root, execute:
# <crs_home>/crs/install/rootcrs.pl -patch
# <db_home>/bin/srvctl start home -o <db_home> -s -n
[root@oraclebdsrv01 ~]# /u01/app/11.2.0/grid/crs/install/rootcrs.pl -patch 2013-06-21 14:05:58: Parsing the host name 2013-06-21 14:05:58: Checking for super user privileges 2013-06-21 14:05:58: User has super user privileges Using configuration parameter file: /u01/app/11.2.0/grid/crs/install/crsconfig_params CRS-4123: Oracle High Availability Services has been started. [root@oraclebdsrv01 ~]#
[root@oraclebdsrv01 ~]# /u01/app/oracle/product/11.1.0/db_1/bin/srvctl start home -o /u01/app/oracle/product/11.1.0/db_1 -s /u01/oracle_install/patches/status.file -n oraclebdsrv01 [root@oraclebdsrv01 ~]#
### 9 Checagem opatch.
Por último, faremos uma chacagem para ver se o patch está instalado e catalogado.
Como oracle, execute:
% opatch lsinventory -detail -oh <rdbms_home>
[root@oraclebdsrv01 ~]# su - oracle [oracle@oraclebdsrv01 ~]$ opatch lsinventory -oh $DB_HOME Invoking OPatch 11.1.0.6.6 Oracle Interim Patch Installer version 11.1.0.6.6 Copyright (c) 2009, Oracle Corporation. All rights reserved. Oracle Home : /u01/app/oracle/product/11.1.0/db_1 Central Inventory : /u01/app/oraInventory from : /etc/oraInst.loc OPatch version : 11.1.0.6.6 OUI version : 11.2.0.1.0 OUI location : /u01/app/oracle/product/11.1.0/db_1/oui Log file location : /u01/app/oracle/product/11.1.0/db_1/cfgtoollogs/opatch/opatch2013-07-20_10-21-28AM.log Patch history file: /u01/app/oracle/product/11.1.0/db_1/cfgtoollogs/opatch/opatch_history.txt Lsinventory Output file location : /u01/app/oracle/product/11.1.0/db_1/cfgtoollogs/opatch/lsinv/lsinventory2013-07-20_10-21-28AM.txt -------------------------------------------------------------------------------- Installed Top-level Products (1): Oracle Database 11g 11.2.0.1.0 There are 1 products installed in this Oracle Home. Interim patches (1) : Patch 9413827 : applied on Fri Jun 21 13:55:34 BRT 2013 Unique Patch ID: 13136265 Created on 25 Oct 2010, 07:07:02 hrs PST8PDT Bugs fixed: 9262748, 9343627, 9655006, 9783609, 9413827, 9778840 Rac system comprising of multiple nodes Rac system comprising of multiple nodes Local node = oraclebdsrv01 Remote node = oraclebdsrv02 -------------------------------------------------------------------------------- OPatch succeeded. [oracle@oraclebdsrv01 ~]$
Como grid, execute:
% opatch lsinventory -detail -oh <crs_home>
[root@oraclebdsrv01 ~]# su - grid [grid@oraclebdsrv01 ~]$ opatch lsinventory -oh $GRID_HOME Invoking OPatch 11.1.0.6.6 Oracle Interim Patch Installer version 11.1.0.6.6 Copyright (c) 2009, Oracle Corporation. All rights reserved. Oracle Home : /u01/app/11.2.0/grid Central Inventory : /u01/app/oraInventory from : /etc/oraInst.loc OPatch version : 11.1.0.6.6 OUI version : 11.2.0.1.0 OUI location : /u01/app/11.2.0/grid/oui Log file location : /u01/app/11.2.0/grid/cfgtoollogs/opatch/opatch2013-07-20_10-19-44AM.log Patch history file: /u01/app/11.2.0/grid/cfgtoollogs/opatch/opatch_history.txt Lsinventory Output file location : /u01/app/11.2.0/grid/cfgtoollogs/opatch/lsinv/lsinventory2013-07-20_10-19-44AM.txt -------------------------------------------------------------------------------- Installed Top-level Products (1): Oracle Grid Infrastructure 11.2.0.1.0 There are 1 products installed in this Oracle Home. Interim patches (1) : Patch 9413827 : applied on Fri Jun 21 13:18:07 BRT 2013 Unique Patch ID: 13136265 Created on 25 Oct 2010, 07:07:18 hrs PST8PDT Bugs fixed: 9262748, 9343627, 9655006, 9783609, 9413827, 9262722, 9778840 Rac system comprising of multiple nodes Local node = oraclebdsrv01 Remote node = oraclebdsrv02 -------------------------------------------------------------------------------- OPatch succeeded. [grid@oraclebdsrv01 ~]$
### 10 Repetir nos outros servidores.
Agora repita as etapas anteriores no próximo nó do RAC.
[root@oraclebdsrv02 ~]# mkdir -p /u01/oracle_install/patches/ [root@oraclebdsrv02 ~]# chown -R oracle:oinstall /u01/oracle_install
[oracle@oraclebdsrv01 ~]$ scp /u01/oracle_install/patches/p9413827_112010_Linux-x86-64.zip oracle@oraclebdsrv02:/u01/oracle_install/patches/ p9413827_112010_Linux-x86-64.zip 100% 285MB 35.6MB/s 00:08 [oracle@oraclebdsrv01 ~]$
3 - Instalar o pacote cvuqdisk de dependência.

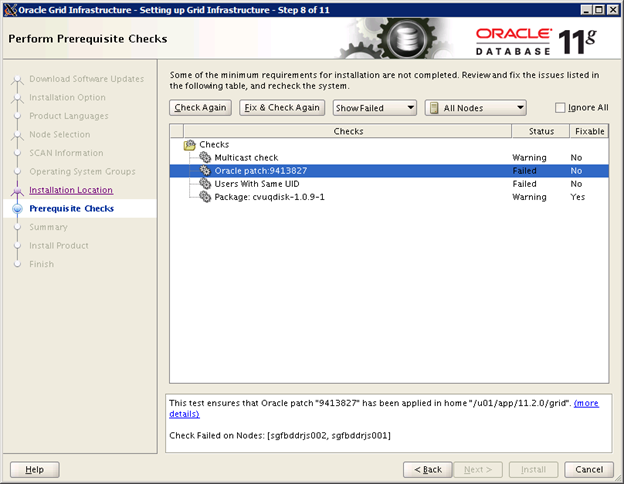

A atualização do grid traz como dependência um novo pacote cvuqdisk. Para a nossa sorte, este pacote é disponibilizado no próprio zip da instalação do Oracle.
Existe outra forma de aplicar este pacote que é diretamente pela parte gráfica na tela de dependências, onde o Oracle irá gerar um script na "/tmp/" para ser executado como root. No entanto, eu ainda prefiro a abordagem manual:
[root@oraclebdsrv01 ~]# find /u01/oracle_install/p10404530_112030_Linux-x86-64/grid/ -name "*.rpm" /u01/oracle_install/p10404530_112030_Linux-x86-64/grid/stage/cvu/cv/remenv/cvuqdisk-1.0.9-1.rpm /u01/oracle_install/p10404530_112030_Linux-x86-64/grid/rpm/cvuqdisk-1.0.9-1.rpm [root@oraclebdsrv01 ~]# yum --disablerepo="*" --nogpgcheck install /u01/oracle_install/p10404530_112030_Linux-x86-64/grid/rpm/cvuqdisk-1.0.9-1.rpm Loaded plugins: rhnplugin, security This system is not registered with RHN. RHN support will be disabled. Setting up Install Process Examining /u01/oracle_install/p10404530_112030_Linux-x86-64/grid/rpm/cvuqdisk-1.0.9-1.rpm: cvuqdisk-1.0.9-1.x86_64 Marking /u01/oracle_install/p10404530_112030_Linux-x86-64/grid/rpm/cvuqdisk-1.0.9-1.rpm as an update to cvuqdisk-1.0.7-1.x86_64 Resolving Dependencies --> Running transaction check ---> Package cvuqdisk.x86_64 0:1.0.9-1 set to be updated --> Finished Dependency Resolution Dependencies Resolved ===================================================================================================================================================================================================== Package Arch Version Repository Size ===================================================================================================================================================================================================== Updating: cvuqdisk x86_64 1.0.9-1 /cvuqdisk-1.0.9-1 11 k Transaction Summary ===================================================================================================================================================================================================== Install 0 Package(s) Upgrade 1 Package(s) Total size: 11 k Is this ok [y/N]: y Downloading Packages: Running rpm_check_debug Running Transaction Test Finished Transaction Test Transaction Test Succeeded Running Transaction Updating : cvuqdisk 1/2 Cleanup : cvuqdisk 2/2 Updated: cvuqdisk.x86_64 0:1.0.9-1 Complete! [root@oraclebdsrv01 ~]#
Agora no outro nó:
[root@oraclebdsrv01 ~]# [root@oraclebdsrv01 ~]# scp /u01/oracle_install/p10404530_112030_Linux-x86-64/grid/rpm/cvuqdisk-1.0.9-1.rpm root@oraclebdsrv02:/tmp/ root@oraclebdsrv02's password: cvuqdisk-1.0.9-1.rpm 100% 8551 8.4KB/s 00:00 [root@oraclebdsrv01 ~]# ssh oraclebdsrv02 root@oraclebdsrv02's password: Last login: Thu Jun 20 14:54:08 2013 from 10.20.1.2 [root@oraclebdsrv02 ~]# yum --disablerepo="*" --nogpgcheck install /tmp/cvuqdisk-1.0.9-1.rpm Loaded plugins: rhnplugin, security This system is not registered with RHN. RHN support will be disabled. Setting up Install Process Examining /tmp/cvuqdisk-1.0.9-1.rpm: cvuqdisk-1.0.9-1.x86_64 Marking /tmp/cvuqdisk-1.0.9-1.rpm as an update to cvuqdisk-1.0.7-1.x86_64 Resolving Dependencies --> Running transaction check ---> Package cvuqdisk.x86_64 0:1.0.9-1 set to be updated --> Finished Dependency Resolution Dependencies Resolved ===================================================================================================================================================================================================== Package Arch Version Repository Size ===================================================================================================================================================================================================== Updating: cvuqdisk x86_64 1.0.9-1 /cvuqdisk-1.0.9-1 11 k Transaction Summary ===================================================================================================================================================================================================== Install 0 Package(s) Upgrade 1 Package(s) Total size: 11 k Is this ok [y/N]: y Downloading Packages: Running rpm_check_debug Running Transaction Test Finished Transaction Test Transaction Test Succeeded Running Transaction Updating : cvuqdisk 1/2 Cleanup : cvuqdisk 2/2 Updated: cvuqdisk.x86_64 0:1.0.9-1 Complete! [root@oraclebdsrv02 ~]#
4 - Instalar e atualizar o Oracle Grid para a última versão.
Estamos já prontos para chamar o instalador do Grid. A partir da versão 11.2.0.3, o Oracle não atualiza as homes existentes, ele cria homes separadas.
Antes, vamos então apenas criar as pastas onde ficará localizado o novo CRS_HOME:
Como root, execute em cada nó:
[root@oraclebdsrv01 ~]# mkdir -p /u01/app/11.2.3/grid/ [root@oraclebdsrv01 ~]# chown grid:oinstall /u01/app/11.2.3/grid/ [root@oraclebdsrv01 ~]# [root@oraclebdsrv02 ~]# mkdir -p /u01/app/11.2.3/grid/ [root@oraclebdsrv02 ~]# chown grid:oinstall /u01/app/11.2.3/grid/ [root@oraclebdsrv02 ~]#
Chamando o instalador. Como grid, execute:
[grid@oraclebdsrv01 ~]$ cd /u01/oracle_install/p10404530_112030_Linux-x86-64/grid/ [grid@oraclebdsrv01 grid]$ ./runInstaller Starting Oracle Universal Installer... Checking Temp space: must be greater than 120 MB. Actual 356122 MB Passed Checking swap space: must be greater than 150 MB. Actual 95997 MB Passed Checking monitor: must be configured to display at least 256 colors. Actual 65536 Passed Preparing to launch Oracle Universal Installer from /tmp/OraInstall2013-06-20_02-59-13PM. Please wait ... [grid@oraclebdsrv01 grid]$

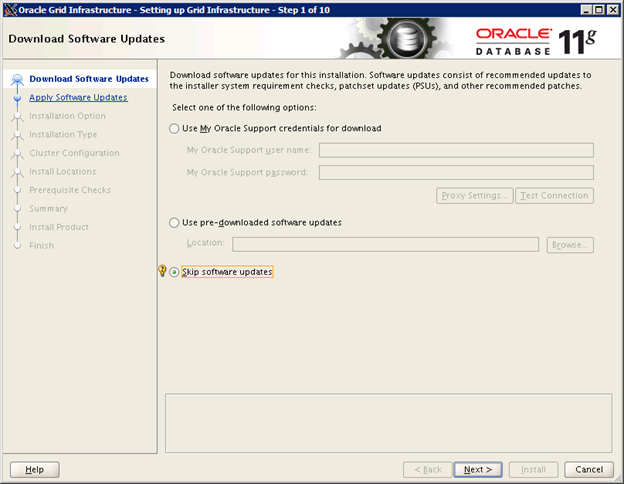

A tela abaixo surgirá. Escolha a opção "Skip software updates".

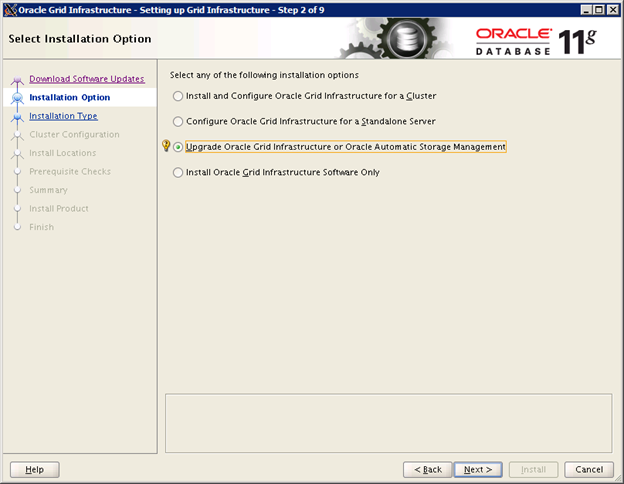

Na tela seguinte, escolha a opção "Upgrade Oracle Grid Infrastructure".

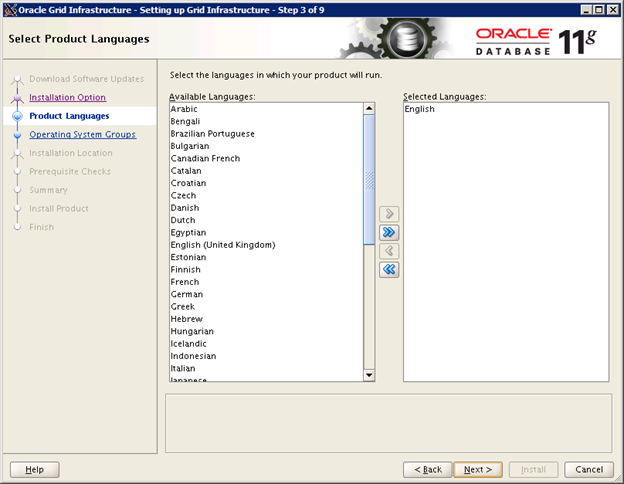

Selecione os idiomas desejados.

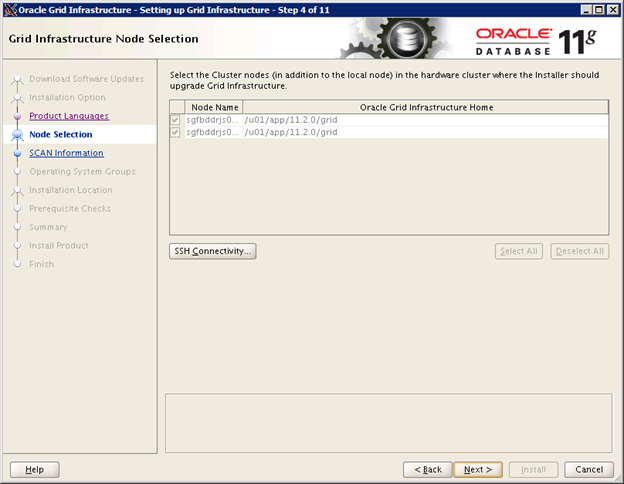

Todos os nós de seu cluster deverão estar selecionados.

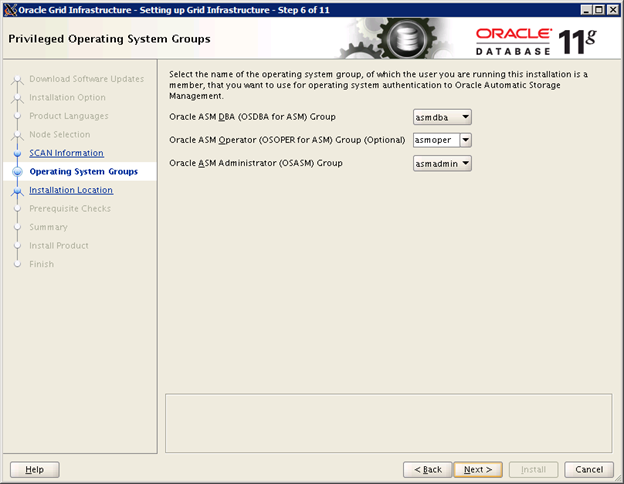

Associe os grupos de SO correspondentes.

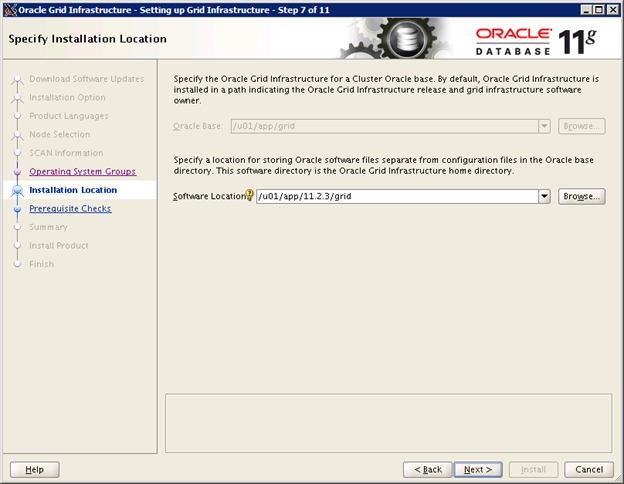

Nesse momento, você deverá escolher um diretório diferente para o seu upgrade e instalação. No meu caso, eu utilizo o padrão "11.2.3".

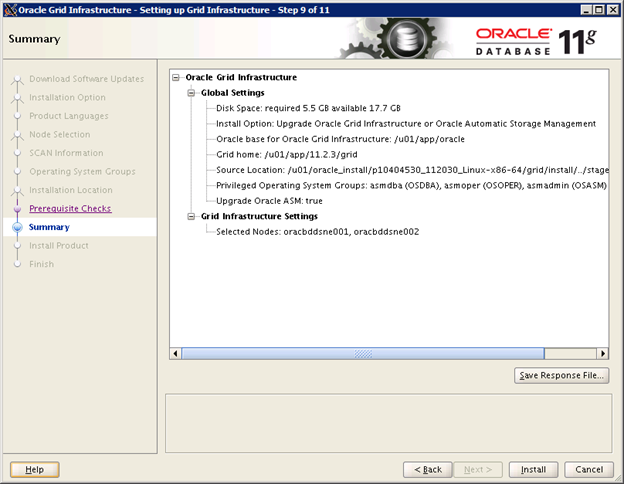

Na tela seguinte, aparecerá um resumo. Confira os dados e clique "Install".

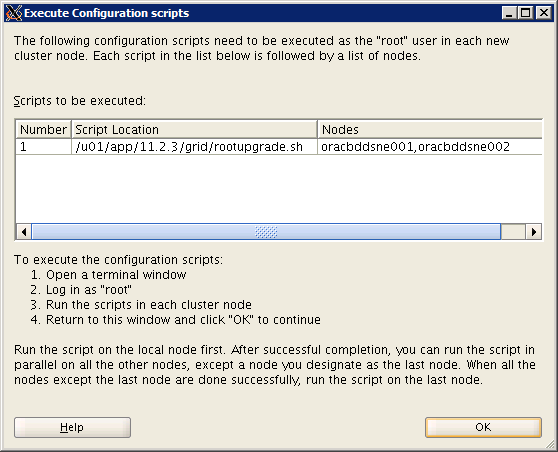

Quando o upgrade finalizar, ele pedirá para executar o script abaixo como root. Execute um de cada vez em ambos os nós, começando pelo nó onde a instalação foi chamada.
Como root, execute no primeiro nó:
[root@oraclebdsrv01 ~]# /u01/app/11.2.3/grid/rootupgrade.sh Performing root user operation for Oracle 11g The following environment variables are set as: ORACLE_OWNER= oracle ORACLE_HOME= /u01/app/11.2.3/grid Enter the full pathname of the local bin directory: [/usr/local/bin]: The contents of "dbhome" have not changed. No need to overwrite. The file "oraenv" already exists in /usr/local/bin. Overwrite it? (y/n) [n]: y Copying oraenv to /usr/local/bin ... The file "coraenv" already exists in /usr/local/bin. Overwrite it? (y/n) [n]: y Copying coraenv to /usr/local/bin ... Entries will be added to the /etc/oratab file as needed by Database Configuration Assistant when a database is created Finished running generic part of root script. Now product-specific root actions will be performed. Using configuration parameter file: /u01/app/11.2.3/grid/crs/install/crsconfig_params Creating trace directory ASM upgrade has started on first node. CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.crsd' on 'oraclebdsrv01' CRS-2790: Starting shutdown of Cluster Ready Services-managed resources on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.ossdb.db' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.LISTENER.lsnr' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.LISTENER_SCAN2.lsnr' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.LISTENER_SCAN3.lsnr' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.LISTENER.lsnr' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.oraclebdsrv01.vip' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.oraclebdsrv01.vip' on 'oraclebdsrv01' succeeded CRS-2672: Attempting to start 'ora.oraclebdsrv01.vip' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.LISTENER_SCAN2.lsnr' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.scan2.vip' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.LISTENER_SCAN3.lsnr' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.scan3.vip' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.scan2.vip' on 'oraclebdsrv01' succeeded CRS-2672: Attempting to start 'ora.scan2.vip' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.scan3.vip' on 'oraclebdsrv01' succeeded CRS-2672: Attempting to start 'ora.scan3.vip' on 'oraclebdsrv02' CRS-2676: Start of 'ora.oraclebdsrv01.vip' on 'oraclebdsrv02' succeeded CRS-2676: Start of 'ora.scan2.vip' on 'oraclebdsrv02' succeeded CRS-2672: Attempting to start 'ora.LISTENER_SCAN2.lsnr' on 'oraclebdsrv02' CRS-2676: Start of 'ora.scan3.vip' on 'oraclebdsrv02' succeeded CRS-2672: Attempting to start 'ora.LISTENER_SCAN3.lsnr' on 'oraclebdsrv02' CRS-2676: Start of 'ora.LISTENER_SCAN2.lsnr' on 'oraclebdsrv02' succeeded CRS-2676: Start of 'ora.LISTENER_SCAN3.lsnr' on 'oraclebdsrv02' succeeded CRS-2677: Stop of 'ora.ossdb.db' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.ARCHIVE.dg' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.DATA.dg' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.ARCHIVE.dg' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.DATA.dg' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.asm' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.asm' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.ons' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.eons' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.ons' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.net1.network' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.net1.network' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.eons' on 'oraclebdsrv01' succeeded CRS-2792: Shutdown of Cluster Ready Services-managed resources on 'oraclebdsrv01' has completed CRS-2677: Stop of 'ora.crsd' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.cssdmonitor' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.ctssd' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.evmd' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.asm' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.mdnsd' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.cssdmonitor' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.evmd' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.mdnsd' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.ctssd' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.asm' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.cssd' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.cssd' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.gpnpd' on 'oraclebdsrv01' CRS-2673: Attempting to stop 'ora.diskmon' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.gpnpd' on 'oraclebdsrv01' succeeded CRS-2673: Attempting to stop 'ora.gipcd' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.gipcd' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.diskmon' on 'oraclebdsrv01' succeeded CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'oraclebdsrv01' has completed CRS-4133: Oracle High Availability Services has been stopped. OLR initialization - successful Replacing Clusterware entries in inittab clscfg: EXISTING configuration version 5 detected. clscfg: version 5 is 11g Release 2. Successfully accumulated necessary OCR keys. Creating OCR keys for user 'root', privgrp 'root'.. Operation successful. Configure Oracle Grid Infrastructure for a Cluster ... succeeded [root@oraclebdsrv01 ~]#
Como root, execute no segundo (e último) nó:
[root@oraclebdsrv02 ~]# /u01/app/11.2.3/grid/rootupgrade.sh Performing root user operation for Oracle 11g The following environment variables are set as: ORACLE_OWNER= oracle ORACLE_HOME= /u01/app/11.2.3/grid Enter the full pathname of the local bin directory: [/usr/local/bin]: The contents of "dbhome" have not changed. No need to overwrite. The file "oraenv" already exists in /usr/local/bin. Overwrite it? (y/n) [n]: y Copying oraenv to /usr/local/bin ... The file "coraenv" already exists in /usr/local/bin. Overwrite it? (y/n) [n]: y Copying coraenv to /usr/local/bin ... Entries will be added to the /etc/oratab file as needed by Database Configuration Assistant when a database is created Finished running generic part of root script. Now product-specific root actions will be performed. Using configuration parameter file: /u01/app/11.2.3/grid/crs/install/crsconfig_params Creating trace directory CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'oraclebdsrv02' CRS-2673: Attempting to stop 'ora.crsd' on 'oraclebdsrv02' CRS-2790: Starting shutdown of Cluster Ready Services-managed resources on 'oraclebdsrv02' CRS-2673: Attempting to stop 'ora.LISTENER.lsnr' on 'oraclebdsrv02' CRS-2673: Attempting to stop 'ora.LISTENER_SCAN2.lsnr' on 'oraclebdsrv02' CRS-2673: Attempting to stop 'ora.LISTENER_SCAN3.lsnr' on 'oraclebdsrv02' CRS-2673: Attempting to stop 'ora.ossdb.db' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.LISTENER.lsnr' on 'oraclebdsrv02' succeeded CRS-2673: Attempting to stop 'ora.oraclebdsrv02.vip' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.oraclebdsrv02.vip' on 'oraclebdsrv02' succeeded CRS-2672: Attempting to start 'ora.oraclebdsrv02.vip' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.LISTENER_SCAN2.lsnr' on 'oraclebdsrv02' succeeded CRS-2673: Attempting to stop 'ora.scan2.vip' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.LISTENER_SCAN3.lsnr' on 'oraclebdsrv02' succeeded CRS-2673: Attempting to stop 'ora.scan3.vip' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.scan2.vip' on 'oraclebdsrv02' succeeded CRS-2672: Attempting to start 'ora.scan2.vip' on 'oraclebdsrv01' CRS-2677: Stop of 'ora.scan3.vip' on 'oraclebdsrv02' succeeded CRS-2672: Attempting to start 'ora.scan3.vip' on 'oraclebdsrv01' CRS-2676: Start of 'ora.oraclebdsrv02.vip' on 'oraclebdsrv01' succeeded CRS-2676: Start of 'ora.scan2.vip' on 'oraclebdsrv01' succeeded CRS-2672: Attempting to start 'ora.LISTENER_SCAN2.lsnr' on 'oraclebdsrv01' CRS-2676: Start of 'ora.scan3.vip' on 'oraclebdsrv01' succeeded CRS-2672: Attempting to start 'ora.LISTENER_SCAN3.lsnr' on 'oraclebdsrv01' CRS-2676: Start of 'ora.LISTENER_SCAN2.lsnr' on 'oraclebdsrv01' succeeded CRS-2676: Start of 'ora.LISTENER_SCAN3.lsnr' on 'oraclebdsrv01' succeeded CRS-2677: Stop of 'ora.ossdb.db' on 'oraclebdsrv02' succeeded CRS-2673: Attempting to stop 'ora.ARCHIVE.dg' on 'oraclebdsrv02' CRS-2673: Attempting to stop 'ora.DATA.dg' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.ARCHIVE.dg' on 'oraclebdsrv02' succeeded CRS-2677: Stop of 'ora.DATA.dg' on 'oraclebdsrv02' succeeded CRS-2673: Attempting to stop 'ora.asm' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.asm' on 'oraclebdsrv02' succeeded CRS-2673: Attempting to stop 'ora.eons' on 'oraclebdsrv02' CRS-2673: Attempting to stop 'ora.ons' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.ons' on 'oraclebdsrv02' succeeded CRS-2673: Attempting to stop 'ora.net1.network' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.net1.network' on 'oraclebdsrv02' succeeded CRS-2677: Stop of 'ora.eons' on 'oraclebdsrv02' succeeded CRS-2792: Shutdown of Cluster Ready Services-managed resources on 'oraclebdsrv02' has completed CRS-2677: Stop of 'ora.crsd' on 'oraclebdsrv02' succeeded CRS-2673: Attempting to stop 'ora.cssdmonitor' on 'oraclebdsrv02' CRS-2673: Attempting to stop 'ora.ctssd' on 'oraclebdsrv02' CRS-2673: Attempting to stop 'ora.evmd' on 'oraclebdsrv02' CRS-2673: Attempting to stop 'ora.asm' on 'oraclebdsrv02' CRS-2673: Attempting to stop 'ora.mdnsd' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.cssdmonitor' on 'oraclebdsrv02' succeeded CRS-2677: Stop of 'ora.evmd' on 'oraclebdsrv02' succeeded CRS-2677: Stop of 'ora.mdnsd' on 'oraclebdsrv02' succeeded CRS-2677: Stop of 'ora.asm' on 'oraclebdsrv02' succeeded CRS-2677: Stop of 'ora.ctssd' on 'oraclebdsrv02' succeeded CRS-2673: Attempting to stop 'ora.cssd' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.cssd' on 'oraclebdsrv02' succeeded CRS-2673: Attempting to stop 'ora.gpnpd' on 'oraclebdsrv02' CRS-2673: Attempting to stop 'ora.diskmon' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.gpnpd' on 'oraclebdsrv02' succeeded CRS-2673: Attempting to stop 'ora.gipcd' on 'oraclebdsrv02' CRS-2677: Stop of 'ora.gipcd' on 'oraclebdsrv02' succeeded CRS-2677: Stop of 'ora.diskmon' on 'oraclebdsrv02' succeeded CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'oraclebdsrv02' has completed CRS-4133: Oracle High Availability Services has been stopped. OLR initialization - successful Replacing Clusterware entries in inittab clscfg: EXISTING configuration version 5 detected. clscfg: version 5 is 11g Release 2. Successfully accumulated necessary OCR keys. Creating OCR keys for user 'root', privgrp 'root'.. Operation successful. Started to upgrade the Oracle Clusterware. This operation may take a few minutes. Started to upgrade the CSS. Started to upgrade the CRS. The CRS was successfully upgraded. Oracle Clusterware operating version was successfully set to 11.2.0.3.0 ASM upgrade has finished on last node. Configure Oracle Grid Infrastructure for a Cluster ... succeeded [root@oraclebdsrv02 ~]#

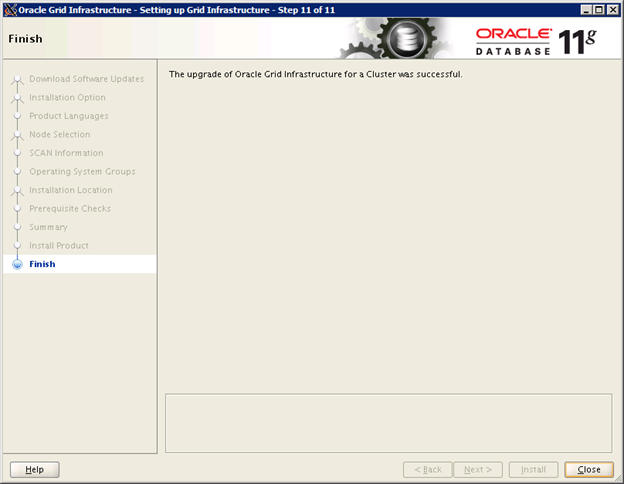

Pronto. Aperte OK na tela solicitando a instalação dos scripts. O upgrade foi realizado com sucesso.
Por fim, atualize .bash_profile de todos os usuarios com a variável apontando para a HOME nova do GRID. Não confundir com a HOME do ORACLE.
Para verificar se seu grid já está executando na nova versão, rode os comandos abaixo como grid:
[grid@oraclebdsrv01 ~]$ crsctl query crs releaseversion Oracle High Availability Services release version on the local node is [11.2.0.3.0] [grid@oraclebdsrv01 ~]$ crsctl query crs activeversion Oracle Clusterware active version on the cluster is [11.2.0.3.0]
5 - Instalar e atualizar o Oracle Database para a última versão.
Agora que já estamos com o Grid na versão 11.2.0.3, a próxima etapa consiste em instalar a database em uma nova home e depois invocar o DBUA para atualizá-la.
Como oracle, execute:
[oracle@oraclebdsrv01 ~]$ cd /u01/oracle_install/p10404530_112030_Linux-x86-64/database/ [oracle@oraclebdsrv01 database]$ ./runInstaller Starting Oracle Universal Installer... Checking Temp space: must be greater than 120 MB. Actual 25835 MB Passed Checking swap space: must be greater than 150 MB. Actual 32724 MB Passed Checking monitor: must be configured to display at least 256 colors. Actual 65536 Passed Preparing to launch Oracle Universal Installer from /tmp/OraInstall2013-07-17_12-07-58PM. Please wait ... [oracle@oraclebdsrv01 database]$

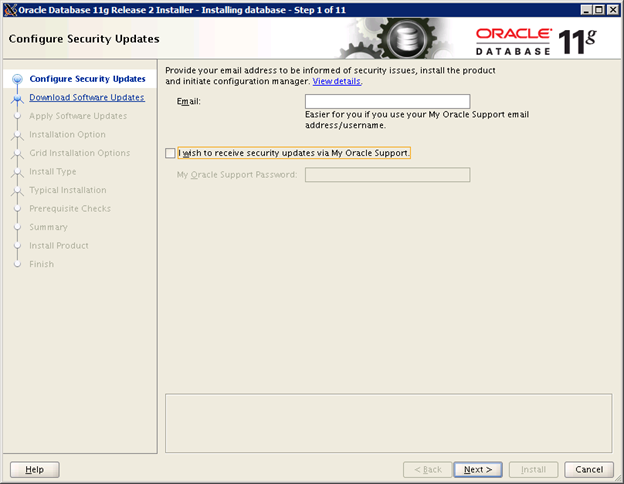

Na tela que surgir, preencha os dados conforme desejado. No meu caso, eu não estou interessado em receber updates via MOS.

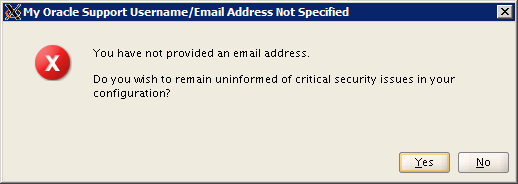

Ao apresentar o alerta, confirme.
Selecione agora a opção "Skip software updates".

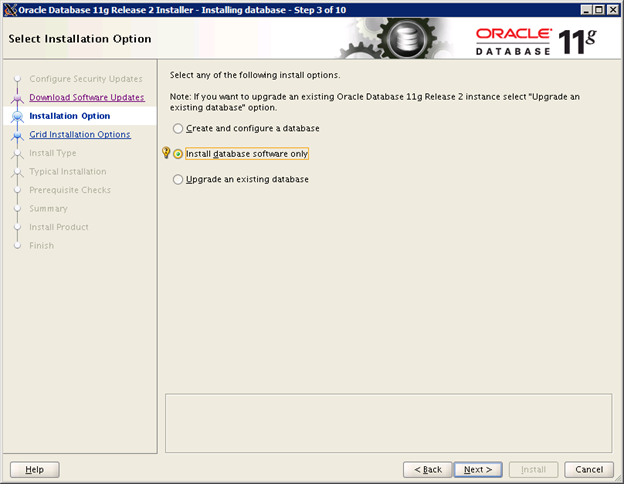

Nesse momento, escolheremos apenas a opção "Install database software only". Faremos o upgrade em outra etapa.

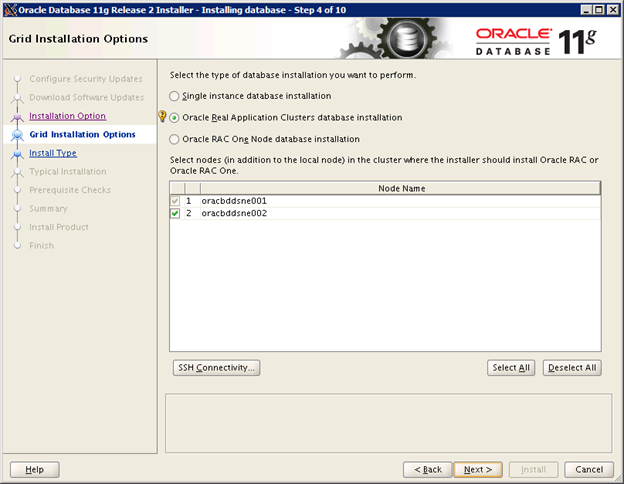

Marque a opção "Oracle Real Application Clusters" e selecione todos os nós do seu cluster.

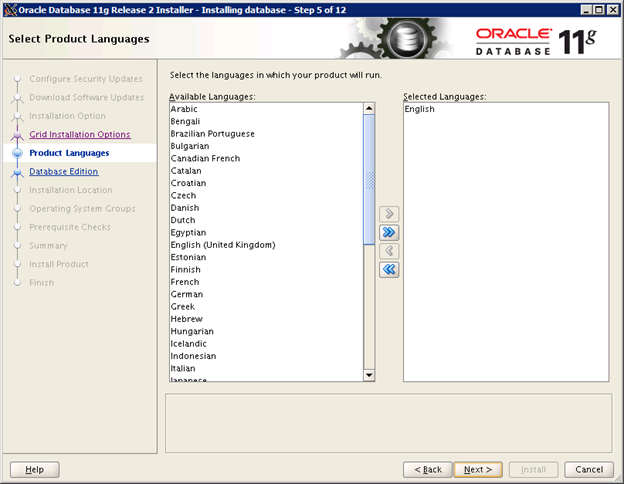

Escolha agora o idioma desejado.

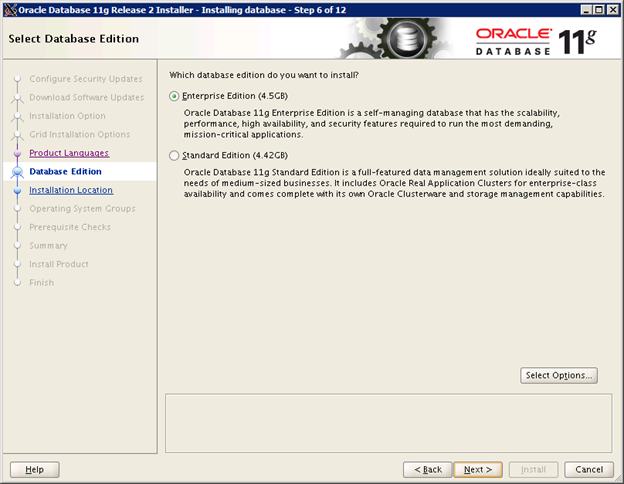

Escolha a mesma edição que do seu banco de dados original, conforme a sua licença.

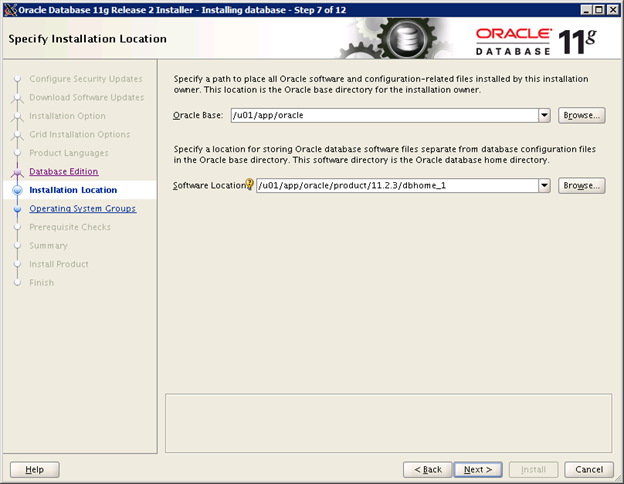

Neste momento, a pasta de destino será diferente da onde o Oracle Database atual está executando. Eu utilizo o padrão "11.2.3".

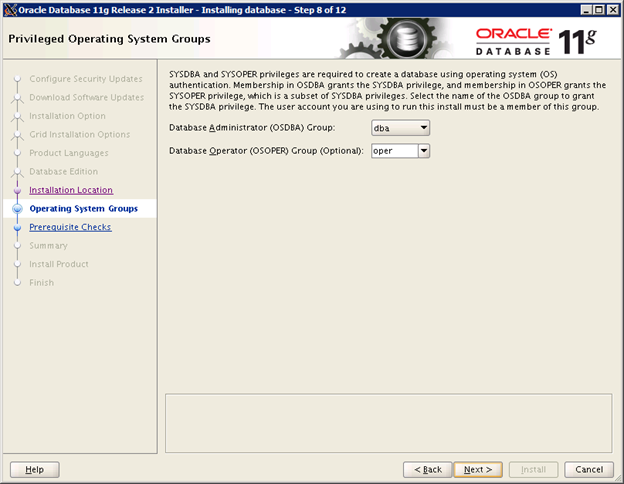

Marque os grupos do SO correspondentes.

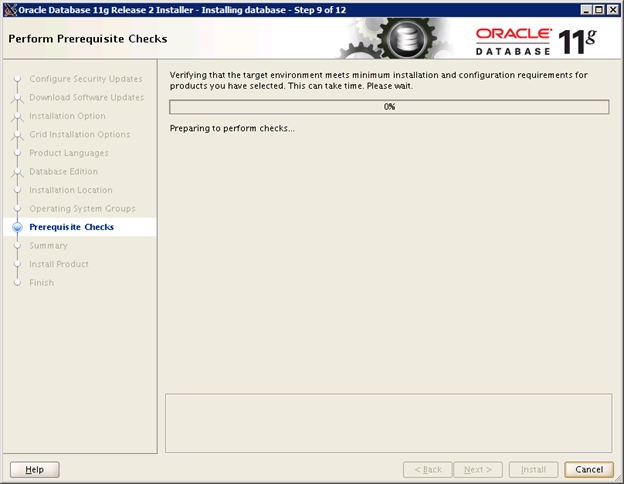

Aguarde a verificação de requisítos. Se tudo der certo, nada faltará.

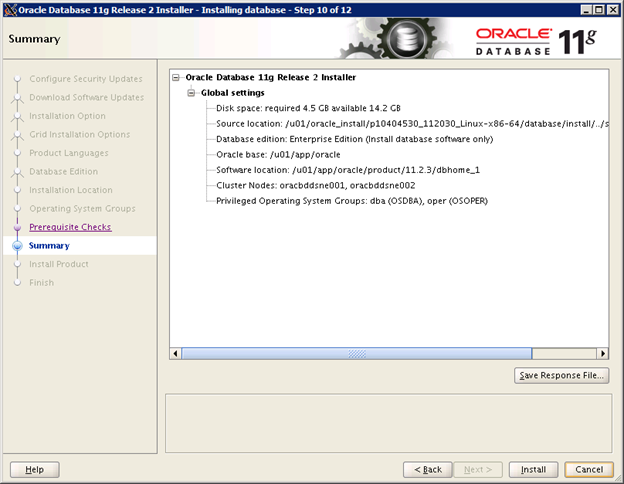

Aguarde a apresentação do resumo e clique "Install".

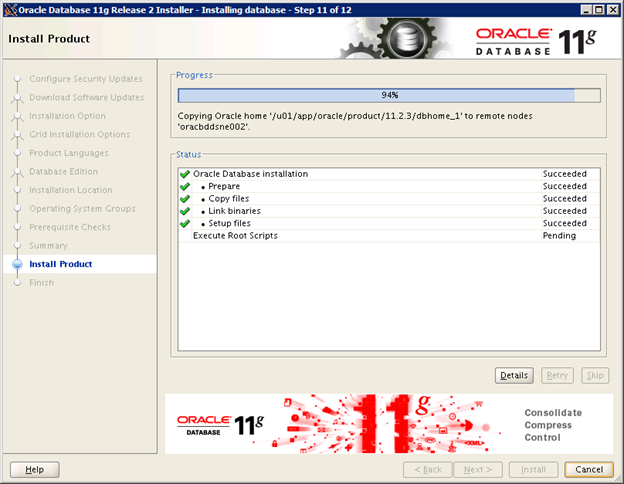

A instalação seguirá.

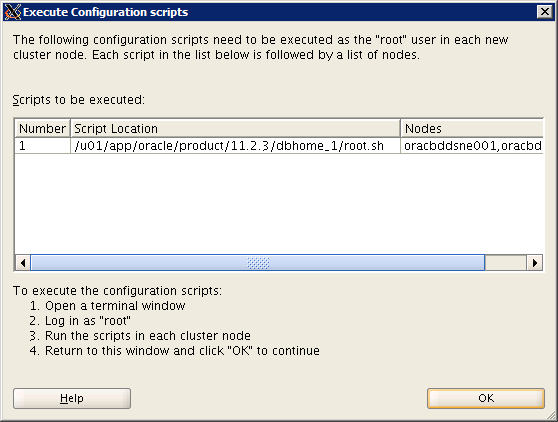

Ao fim da instalação, será solicitado a execução do script com o usuário root. Execute em todos os nós, um por vez.
Como root, execute em todos os nós:
[root@oraclebdsrv01 ~]# /u01/app/oracle/product/11.2.3/dbhome_1/root.sh Performing root user operation for Oracle 11g The following environment variables are set as: ORACLE_OWNER= oracle ORACLE_HOME= /u01/app/oracle/product/11.2.3/dbhome_1 Enter the full pathname of the local bin directory: [/usr/local/bin]: The contents of "dbhome" have not changed. No need to overwrite. The contents of "oraenv" have not changed. No need to overwrite. The contents of "coraenv" have not changed. No need to overwrite. Entries will be added to the /etc/oratab file as needed by Database Configuration Assistant when a database is created Finished running generic part of root script. Now product-specific root actions will be performed. Finished product-specific root actions. [root@oraclebdsrv01 ~]#

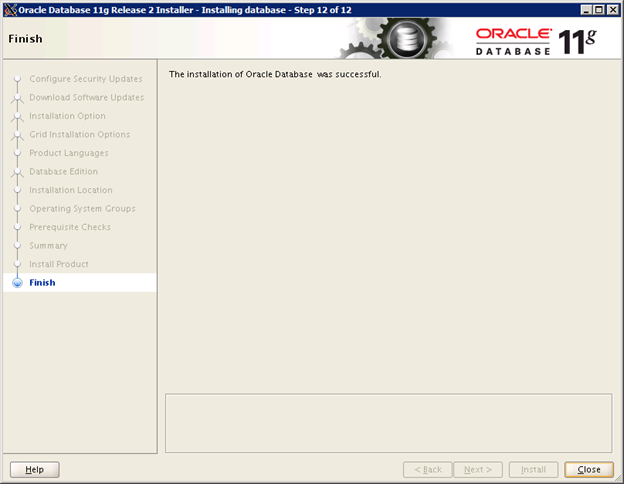

Por fim, a instalação exibirá a tela de sucesso.
Pronto. Por fim, atualize .bash_profile de todos os usuarios com a variável apontando para a HOME nova do ORACLE. Não confundir com a HOME do GRID.
Agora vamos executar o DBUA para migrar o banco para a nova home.
Como oracle, execute:
[oracle@oraclebdsrv01 ~]$ /u01/app/oracle/product/11.2.3/dbhome_1/bin/dbua

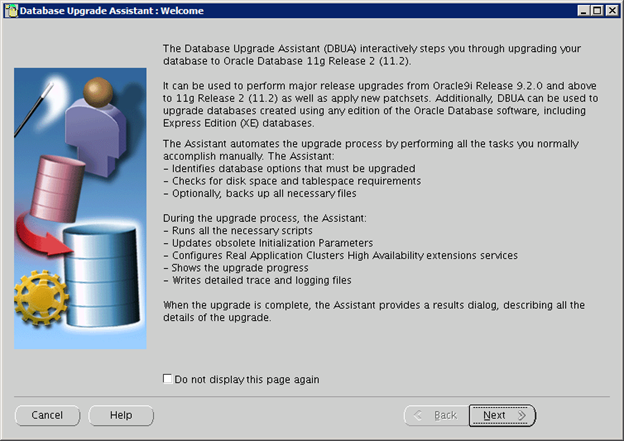

A tela de upgrade do banco aparecerá.

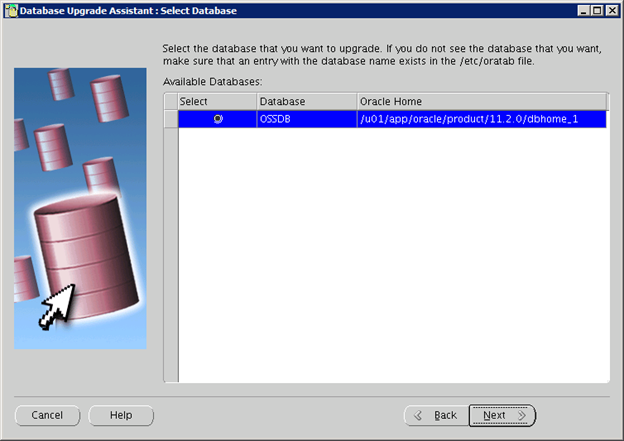

Selecione o banco que deseja atualizar.

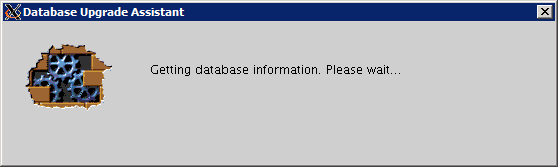

Aguarde a verificação.

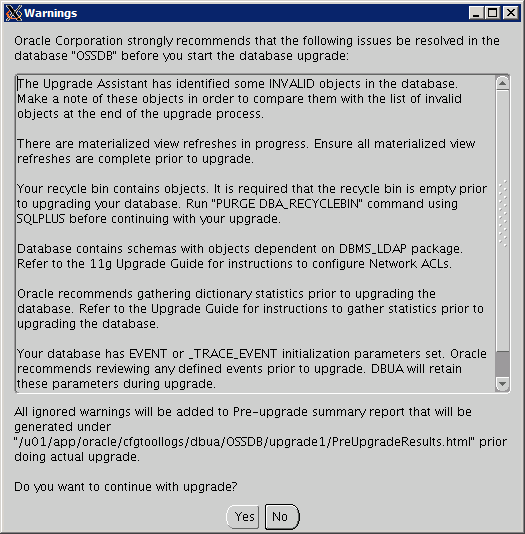

Será exibida uma tela com as recomendações necessárias a serem feitas. Execute-as antes de prosseguir.
Durante a atualização, a Oracle recomenda que sejam algumas checagens. Abaixo estão alguns exemplos para ajudar a solucioná-los:
-- Listar e recompilar objetos inválidos: select * from dba_objects where status<>'VALID'; EXEC UTL_RECOMP.recomp_serial(); EXEC UTL_RECOMP.recomp_parallel(4); -- Verificar se existem refreshes de MVIEW em andamento: select currmvowner, currmvname from v$mvrefresh; -- Verificar se existem itens na lixeira: select * from dba_recyclebin; PURGE DBA_RECYCLEBIN; -- Verificar se existem objetos além dos de sistema relacionados a package DBMS_LDAP: select * from dba_dependencies where referenced_name='DBMS_LDAP'; -- Verificar se os parametros 'event' ou '_trace_event' estão não default e salvar listar de parâmetros atuais: select * from v$parameter where name in ('event','_trace_event'); create pfile=/tmp/pfile.bkp.txt from spfile; -- Refazer estatísticas das tabelas de sistema: exec DBMS_STATS.GATHER_FIXED_OBJECTS_STATS; exec DBMS_STATS.GATHER_DICTIONARY_STATS;

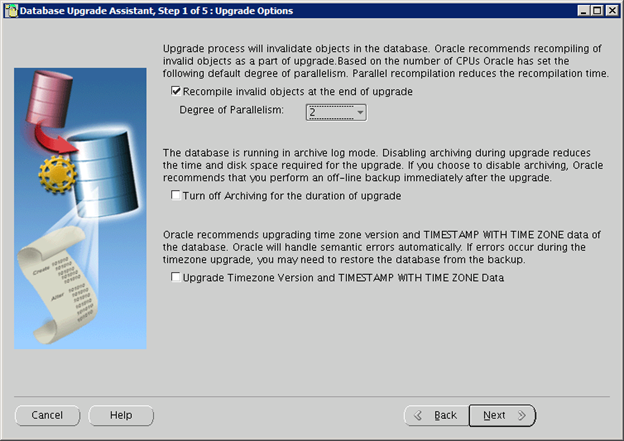

Na tela seguinte, recomendo não desativar os archives para possibilitar uma volta segura caso necessário.

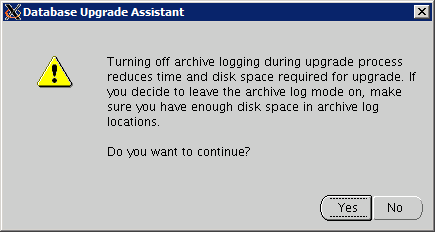

Ao aparecer o alerta, prossiga com a instalação.

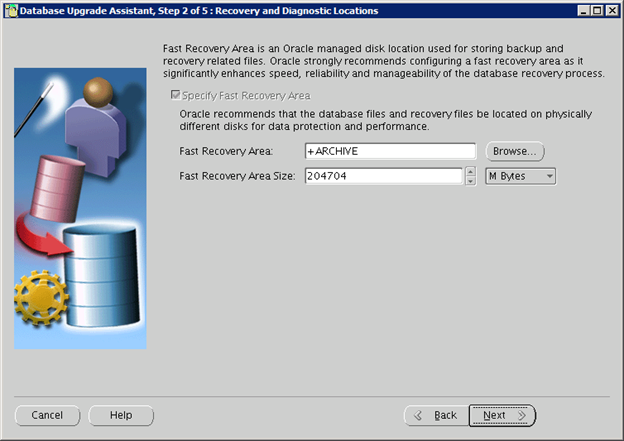

Escolha a área de ARCHIVE, se já não estiver especificada.

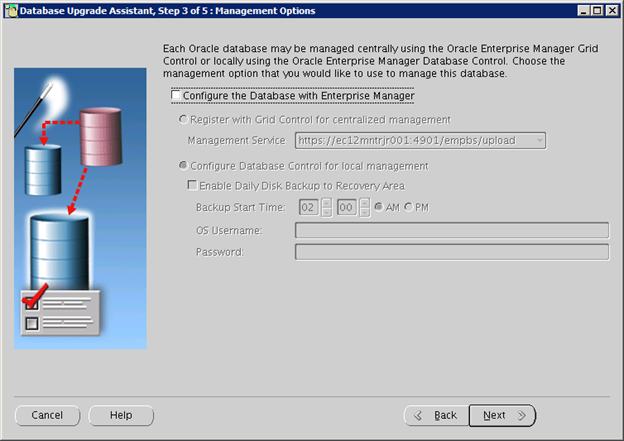

Desmarque a opção de configurar o Enterprise Manager. É aconselhável executar manualmente depois.
Verifique o relatório e clique "Finish".

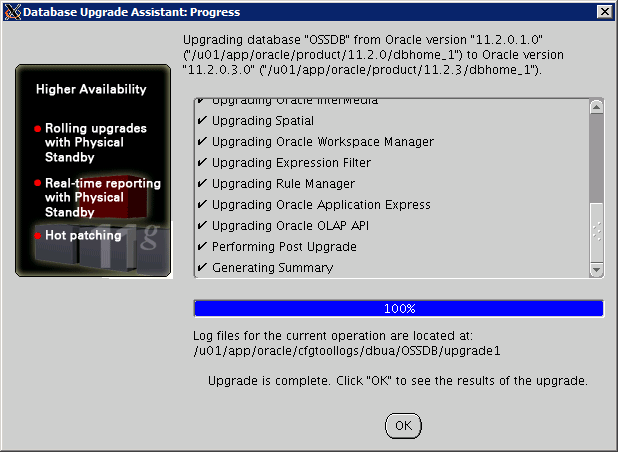

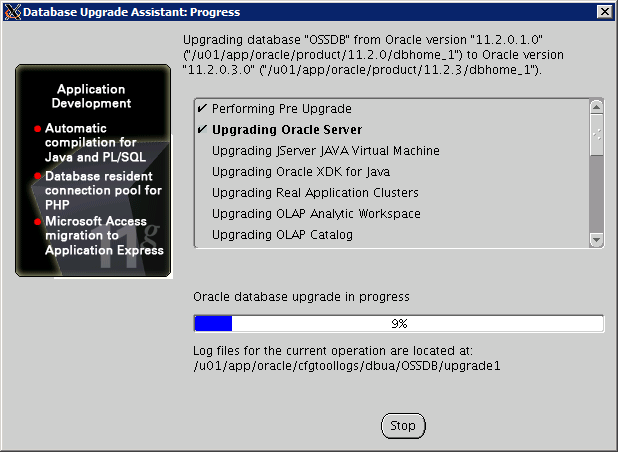

O upgrade inicializará.
Ao término com sucesso, clique Ok. É aconselhável verificar os arquivos de log gerados por mensagens "ORA-".
A atualização apresentará um relatório final.
Para finalizar, não esqueça de copiar o arquivo tnsnames.ora, assim como qualquer arquivo de configuração ".ora" que seja relevante, da home antiga para a nova.
6 - Aplicar o último Patch Set Update no Oracle Grid e Database.
Até aqui já estaria fechada a sua atualização, mas sempre é bom ter todas as versões de correções instaladas. Portanto, dê uma lida no artigos para aplicar o último PSU aqui!
Não esqueça de apagar os arquivos de instalação para economizar espaço!
